BNC F to HDBNC M Str 75 Ohm 2R3365 18 in-2479975-2
Cable Assemblies

2479975-1

Active
TE Connectivity AMP Connectors

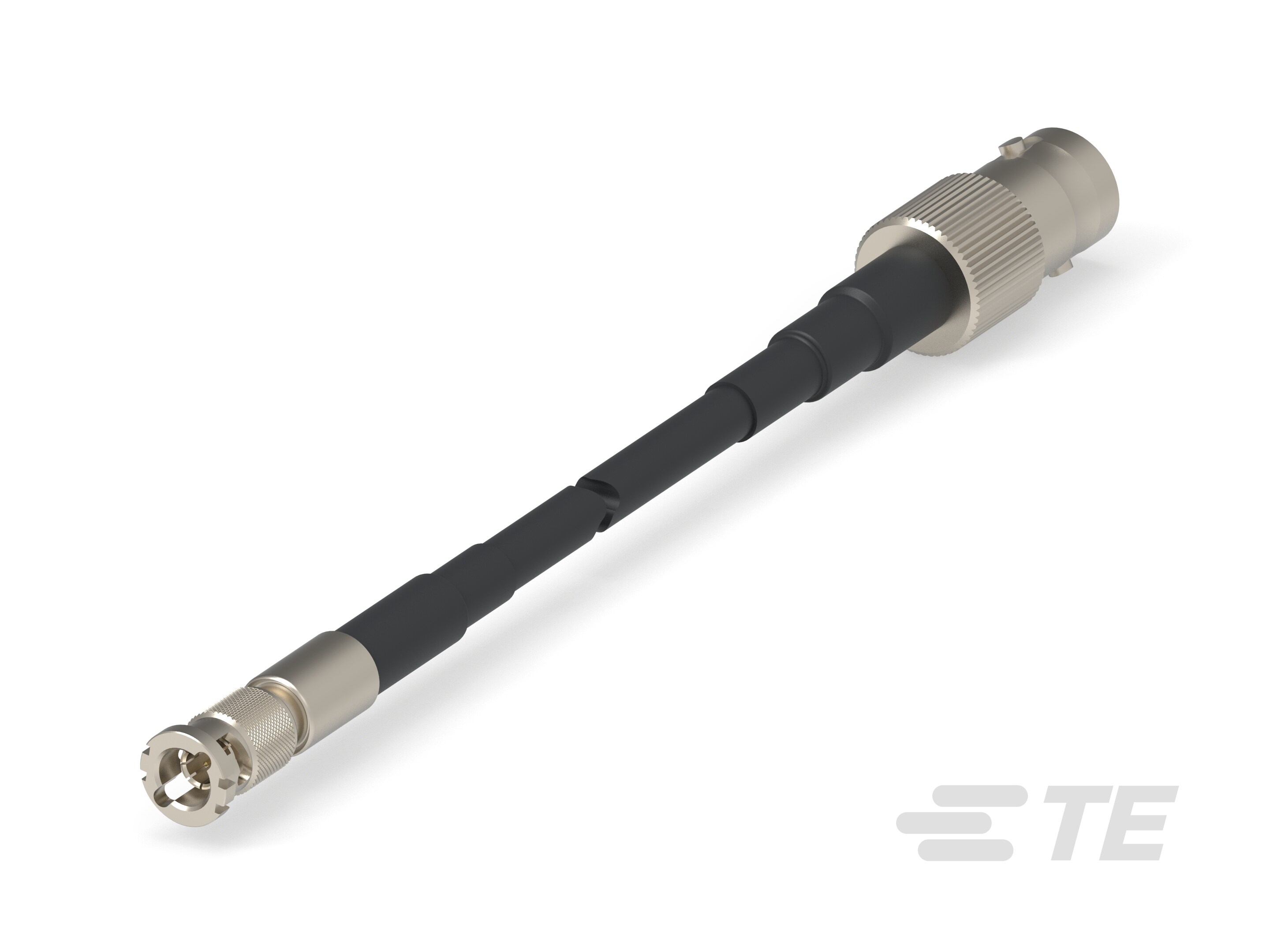

RF / COAXIAL CABLE ASSEMBLY, BNC JACK TO HD BNC PLUG, 2R3365 ST, 75 OHM, 12 ", 305 MM, BLACK

BNC F to HDBNC M Str 75 Ohm 2R3365 18 in-2479975-2
Cable Assemblies

2479975-1

Active
TE Connectivity AMP Connectors

RF / COAXIAL CABLE ASSEMBLY, BNC JACK TO HD BNC PLUG, 2R3365 ST, 75 OHM, 12 ", 305 MM, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification2479975-1
1st ConnectorBNC Jack
1st Connector Mounting TypeFree Hanging (In-Line)
1st Contact GenderFemale
2nd ConnectorHD-BNC Plug
2nd Connector Mounting TypeFree Hanging (In-Line)
2nd Contact GenderMale
ColorBlack
Frequency - Max4 GHz
Length12.01 in
Operating Temperature (Max)75 °C
Operating Temperature (Min)-30 °C
Overall Impedance75 Ohms
StyleBNC, HD-BNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$Updated
DigikeyBulk 100$ 27.64<6d
NewarkEach 1$ 31.0430d+
5$ 30.08
10$ 29.12
25$ 28.22
50$ 27.40
100$ 26.59
RS GroupMinimum Package Quantity (MPQ) 1$ 28.8530d+
10$ 26.53

CAD

3D models and CAD resources for this part

Description

General part information

2479975-1

BNC to HDBNC Cable Assembly, .305 m [1 ft], Black Cable, 0 – 4 GHz, 75 ohm, PVC Jacket, 4.3 mm [.169 in] Diameter, BNC Jack End A, HDBNC Plug End B
