1103426-1
ActiveTE Connectivity AMP Connectors

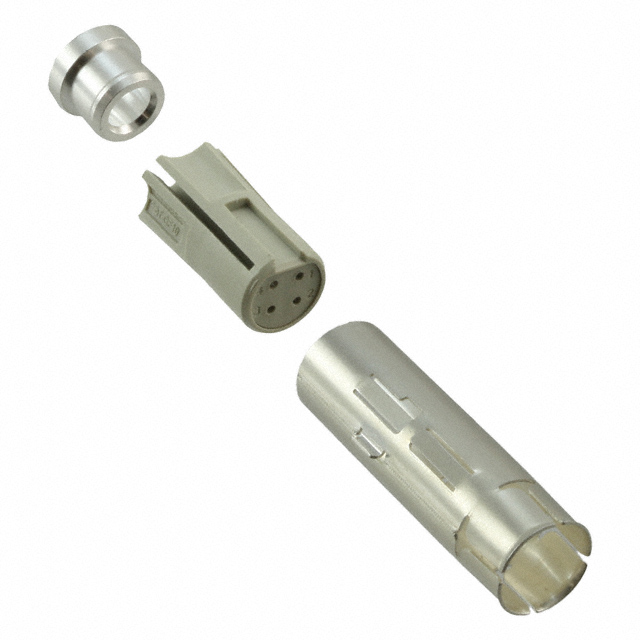

INSERT MALE 4POS CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1103426-1
ActiveTE Connectivity AMP Connectors
INSERT MALE 4POS CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1103426-1 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | HDP-22 |
| Gender | Male |
| Housing Material | Copper Alloy |
| Number of Positions | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Termination Style | Crimp |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1103426 Series
INSERT MALE 4POS CRIMP
| Part | Termination Style | Housing Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Type | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1103426-1 | Crimp | Copper Alloy | Insert without Contacts | -20 C | 80 C | Male | HDP-22 | 4 | 60 VDC |
Description
General part information
1103426 Series
Male Insert without Contacts 4 Position Crimp
