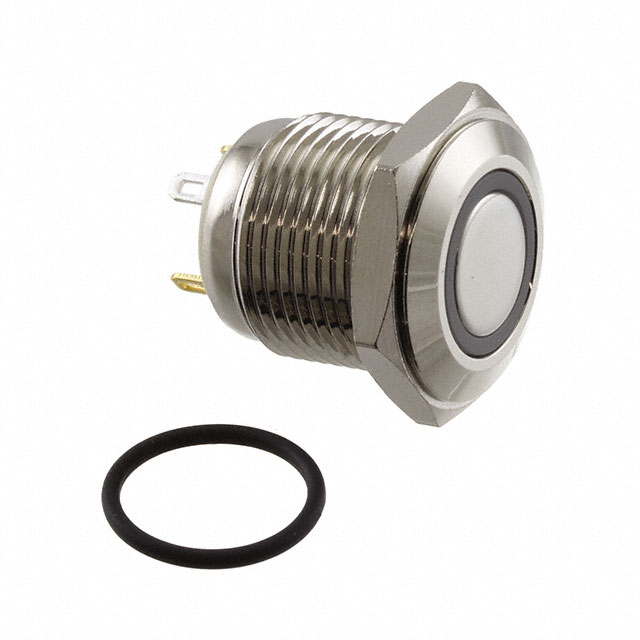

PV6F240NN-331

Active

E-Switch

SWITCH PUSHBUTTON SPST 2A 48V

Deep-Dive with AI

Search across all available documentation for this part.

PV6F240NN-331

Active

E-Switch

SWITCH PUSHBUTTON SPST 2A 48V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV6F240NN-331

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

PV6F24011 Series

Part	Termination Style	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Electrical Life	Circuit	Switch Function	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Mounting Type	Voltage Rating - DC	Actuator Type	Mechanical Life	Current Rating (Amps)	Color - Actuator/Cap	Type	Actuator Marking	Termination Style	Termination Style	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch PV6F240NN-3K1	Solder Lug	IP65 - Dust Tight Water Resistant	55 °C	-20 C	1.8 VDC 2.8 VDC	50000 Cycles	SPST-NO	Off-Mom	16 mm	LED Green/Orange	Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Silver	Anti-Vandal Illuminated
E-Switch PV6H240SS-3R1	Solder Lug	IP65 - Dust Tight Water Resistant	70 °C	-20 C	1.8 VDC 2.8 VDC	200000 Cycles	SPST-NO	Off-Mom	16 mm	Blue Green LED Red	Panel Mount Front	48 V	Button Round	1000000 Cycles	2 A	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV6F240NN-331	Solder Lug	IP65 - Dust Tight Water Resistant	70 °C	-20 C	2.8 VDC	200000 Cycles	SPST-NO	Off-Mom	16 mm	Green LED	Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV6F240SS-341PWR	Solder Lug	IP65 - Dust Tight Water Resistant	70 °C	-20 C	2.8 VDC	200000 Cycles	SPST-NO	Off-Mom	16 mm	Blue LED	Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Silver	Anti-Vandal Illuminated	Power Symbol
E-Switch PV6F24011-311	Quick Connect Solder	IP65 - Dust Tight Water Resistant	55 °C	-20 C	1.8 VDC	50000 Cycles	SPST-NO	Off-Mom	16 mm	LED Red	Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Black	Anti-Vandal Illuminated		0.11 in	2.8 mm
E-Switch PV6H240SS-341	Solder Lug	IP65 - Dust Tight Water Resistant	70 °C	-20 C	2.8 VDC	200000 Cycles	SPST-NO	Off-Mom	16 mm	Blue LED	Panel Mount Front	48 V	Button Round	1000000 Cycles	2 A	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV6F24011G-301	Solder Lug	IP65 - Dust Tight Water Resistant	70 °C	-20 C	2.8 VDC	200000 Cycles	SPST-NO	Off-Mom	16 mm	LED White	Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Black	Anti-Vandal Illuminated	No Marking
E-Switch PV6F240SSG-3L1-M15	Solder Lug	IP65 - Dust Tight Water Resistant	55 °C	-20 C	1.8 VDC 2.8 VDC	50000 Cycles	SPST-NO	Off-Mom	16 mm		Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Silver	Illuminated Standard				Blue/Orange	LED
E-Switch PV6F240NN-304	Solder Lug	IP65 - Dust Tight Water Resistant	70 °C	-20 C	12 VDC	200000 Cycles	SPST-NO	Off-Mom	16 mm	LED White	Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV6FW40SS-341	Wire Leads	IP65 - Dust Tight Water Resistant	55 °C	-20 C	2.8 VDC	50000 Cycles	SPST-NO	Off-Mom	16 mm	Blue LED	Panel Mount Front	48 V	Button Flush Round	1000000 Cycles	2 A	Silver	Anti-Vandal Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.57
		40	$ 8.68
		120	$ 8.33
		1000	$ 6.98

Description

General part information

PV6F24011 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
