FMCA2839-36
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCPLUG 36
FMCA2839-36
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCPLUG 36
Description
General part information
FMCA2839-36

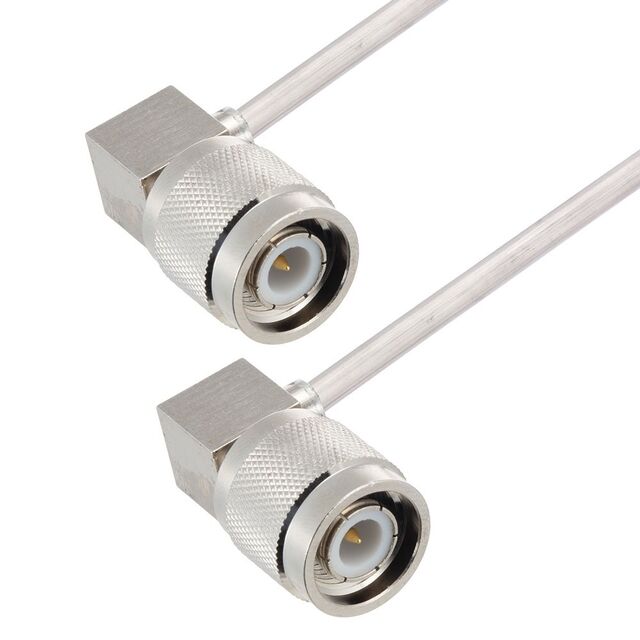

Cable Assembly Coaxial TNC to TNC Hand Formable .141 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2839-36 |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | TNC |
