Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STTH8S06FP | STTH8 Series |
|---|---|---|
| Current - Average Rectified (Io) | 8 A | 8 A |
| Current - Reverse Leakage @ Vr | 20 µA | 10 - 30 µA |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature - Junction [Max] | 175 °C | 175 °C |

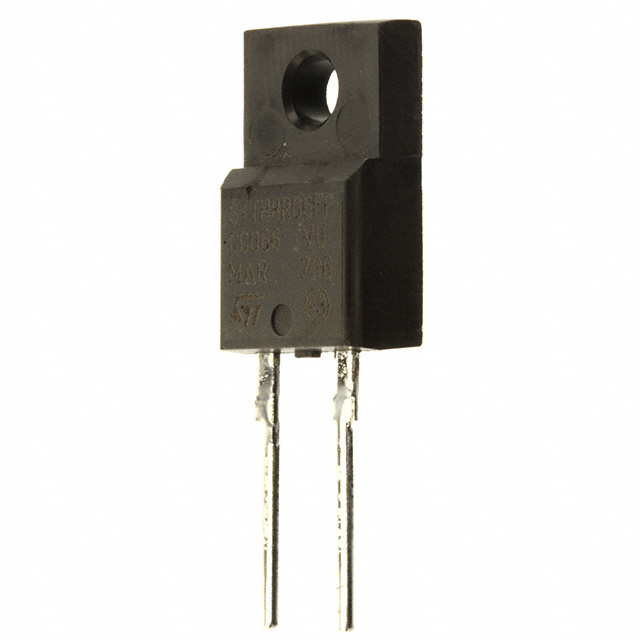

| Package / Case | TO-220-2 Full Pack | TO-220-2 Full Pack, TO-220-2 |
| Reverse Recovery Time (trr) | 18 ns | 18 - 45 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | - | TO-220AC |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V | 300 - 600 V |
| Voltage - Forward (Vf) (Max) @ If | 3.4 V | 1.8 - 3.4 V |
STTH8 Series
600 V, 8 A Turbo 2 Ultrafast Diode
| Part | Operating Temperature - Junction [Max] | Voltage - DC Reverse (Vr) (Max) [Max] | Reverse Recovery Time (trr) | Current - Average Rectified (Io) | Package / Case | Technology | Speed | Mounting Type | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STTH8R06FP | 175 °C | 600 V | 45 ns | 8 A | TO-220-2 Full Pack | Standard | 200 mA, 500 ns | Through Hole | 30 µA | ||
STMicroelectronics STTH8S06FP | 175 °C | 600 V | 18 ns | 8 A | TO-220-2 Full Pack | Standard | 200 mA, 500 ns | Through Hole | 20 µA | 3.4 V | |
STMicroelectronics STTH8R03D | 175 °C | 300 V | 30 ns | 8 A | TO-220-2 | Standard | 200 mA, 500 ns | Through Hole | 10 µA | 1.8 V | TO-220AC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 0.70 | |
| 100 | $ 0.56 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.47 | |||
| 1250 | $ 0.39 | |||
| 2500 | $ 0.36 | |||
| 5000 | $ 0.35 | |||
Description
General part information
STTH8 Series
The STTH8R06, which uses ST Turbo 2 600 V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions.
