Description
General part information
PE44649Z

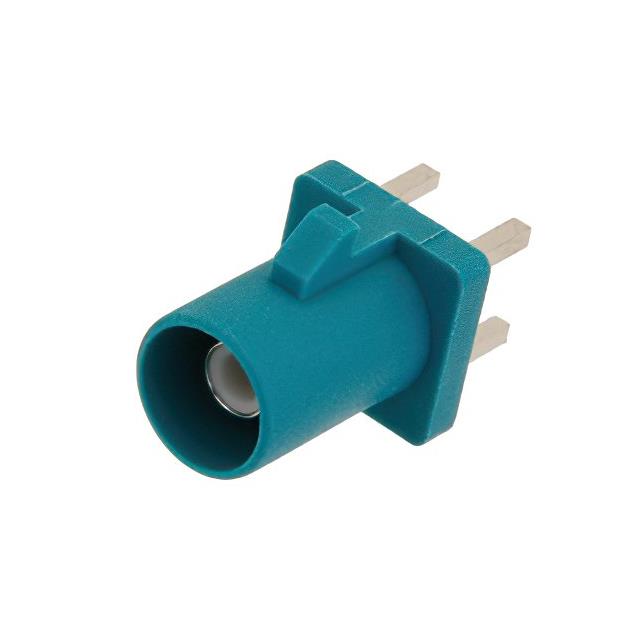

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44649Z |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | Fakra, SMB |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code Z |
| Frequency - Max | 4 GHz |
| Housing Color | Water, Blue |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
