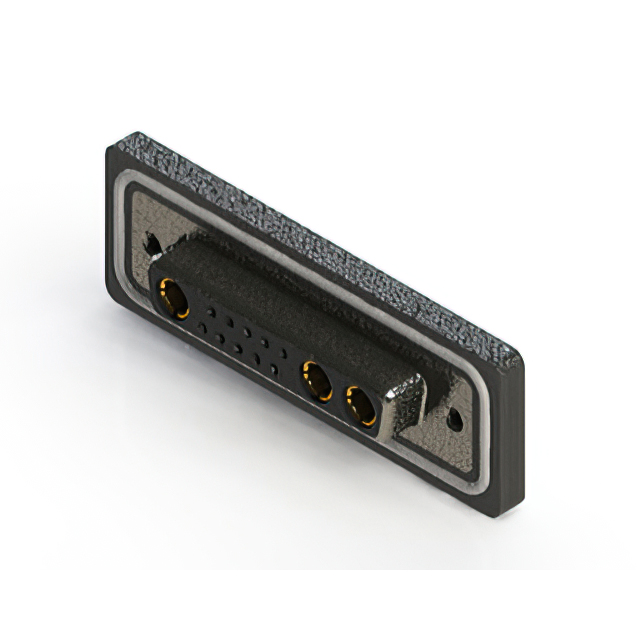

628W13W3324-3NA

Active

EDAC Inc.

CONN D-SUB RCPT 13P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W13W3324-3NA

Active

EDAC Inc.

CONN D-SUB RCPT 13P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W13W3324-3NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

628W13W Series

Part	Dielectric Material	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Color	Connector Style	Flange Feature	Voltage Rating	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Termination	Ingress Protection	Contact Material	Contact Finish	Contact Type	Current Rating (Amps)
EDAC Inc. 628W13W3324-4NA	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 40 A	Black	Combo D-Sub	Housing/Shell (M3)	125 VDC	Panel Mount Through Hole	10	3	15 µin	0.38 µm	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel	Solder	IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3324-3N2	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 30 A	Black	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Panel Mount Through Hole	10	3	15 µin	0.38 µm	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel	Solder	IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3324-2NA	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 20 A	Black	Combo D-Sub	Housing/Shell (M3)	125 VDC	Panel Mount Through Hole	10	3	15 µin	0.38 µm	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel	Solder	IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3324-1ND	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2		Black	Combo D-Sub	Board Side (M3)	125 VDC	Panel Mount Through Hole	10	3	15 µin	0.38 µm	13C3 13W3 B DB	3	Receptacle Female Sockets	Board Lock Shielded	-25 °C	85 °C	Nickel Plated Steel	Solder	IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power	10A 5A
EDAC Inc. 628W13W3624-2NA	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 20 A	Black	Combo D-Sub	Housing/Shell (M3)	125 VDC	Panel Mount Through Hole	10	3	30 Áin	0.76 Ám	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel	Solder	IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3622-2N2	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 20 A	Black	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Panel Mount Through Hole	10	3	30 Áin	0.76 Ám	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel		IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3624-2N5	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 20 A	Black	Combo D-Sub	4-40 Board Side	125 VDC	Panel Mount Through Hole	10	3	30 Áin	0.76 Ám	13C3 13W3 B DB	3	Receptacle Female Sockets	Board Lock Shielded	-25 °C	85 °C	Nickel Plated Steel	Solder	IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3322-3N2	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 30 A	Black	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Panel Mount Through Hole	10	3	15 µin	0.38 µm	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel		IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3324-3NA	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 30 A	Black	Combo D-Sub	Housing/Shell (M3)	125 VDC	Panel Mount Through Hole	10	3	15 µin	0.38 µm	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel	Solder	IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power
EDAC Inc. 628W13W3122-3N2	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	2	5 A 30 A	Black	Combo D-Sub	Housing/Shell (4-40)	125 VDC	Panel Mount Through Hole	10	3	5 µin	0.127 µm	13C3 13W3 B DB	3	Receptacle Female Sockets	Shielded	-25 °C	85 °C	Nickel Plated Steel		IP67 - Dust Tight Waterproof	Copper Alloy	Gold	Signal and Power

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 20.30

Description

General part information

628W13W Series

13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
