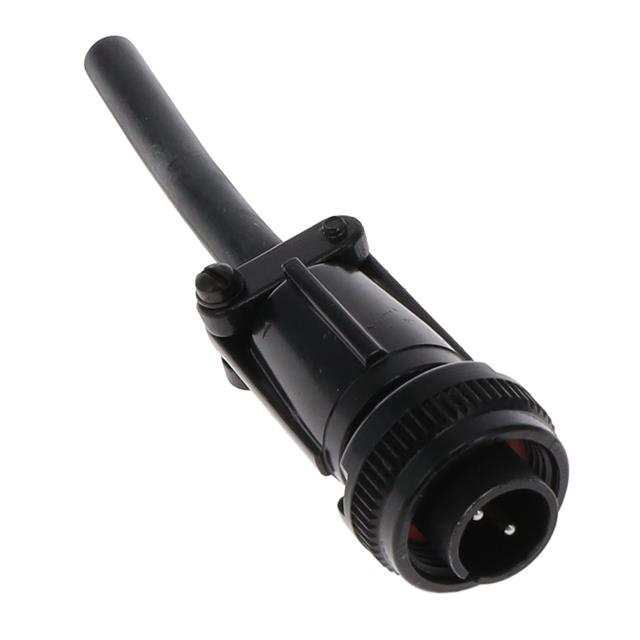

C90-3106F12S-3P - C90-3106F12S-3P

C90-3106F12S-3P

Active
Harwin Inc.

MIL SERIES CONNECTOR, 2 CONTACT(S), ALUMINUM ALLOY, MALE, CRIMP AND SOLDER TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90-25042-14SC90 Circular Catalog+1
C90-3106F12S-3P - C90-3106F12S-3P

C90-3106F12S-3P

Active
Harwin Inc.

MIL SERIES CONNECTOR, 2 CONTACT(S), ALUMINUM ALLOY, MALE, CRIMP AND SOLDER TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

DocumentsC90-25042-14SC90 Circular Catalog+1

Technical Specifications

Parameters and characteristics for this part

SpecificationC90-3106F12S-3P
ApplicationsIndustrial, Automotive
Backshell Material, PlatingBlack Zinc Cobalt, Aluminum Alloy
Cable Opening [diameter]7.14 mm
Cable Opening [diameter]0.281 in
ColorBlack
Connector TypePlug, Male Pins
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A
FeaturesCable Clamp, Coupling Nut, Backshell
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialSynthetic Rubber
Mounting TypeFree Hanging (In-Line)
Number of Positions2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishBlack Zinc Cobalt Alloy
Shell MaterialAluminum Alloy
Shell Size - Insert12S-3
ShieldingUnshielded
Voltage Rating700 VDC, 500 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 14.51
10$ 12.58
25$ 12.16
NewarkEach 100$ 16.38
250$ 15.31
500$ 14.99
1000$ 14.24

Description

General part information

C90-3106F12S-3P

2 (Power) Position Circular Connector Plug, Male Pins Solder Cup
