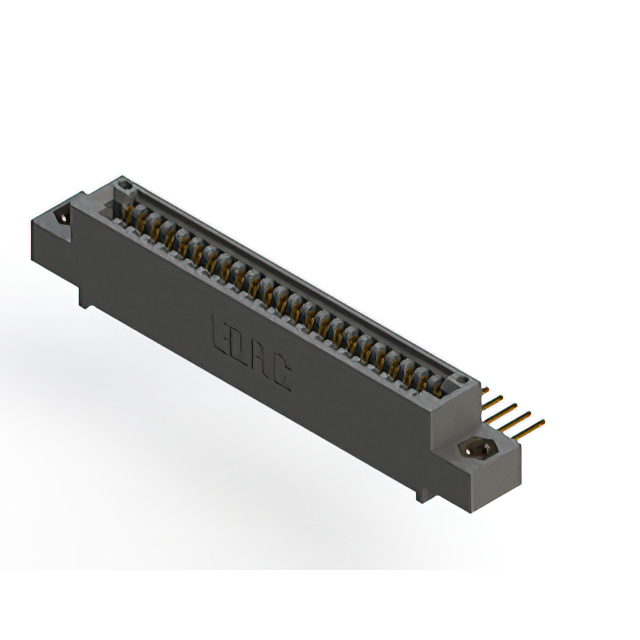

395-023-559-408

Active

EDAC Inc.

2.54MM 23P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-023-559-408

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	23
Number of Positions/Bay/Row [custom]	23
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

395-023 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Number of Positions/Bay/Row [custom]	Mounting Type	Color	Pitch [x]	Pitch [x]	Contact Material	Gender	Card Type	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Read Out	Material - Insulation	Features	Flange Feature	Flange Feature
EDAC Inc. 395-023-541-102	-40 °C	105 ░C	Cantilever	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Single	Polyester Thermoplastic
EDAC Inc. 395-023-521-458	-40 °C	105 ░C	Cantilever	Solder	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			4-40 Threaded Insert Top Mount Opening	Single	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-023-541-107	-40 °C	105 ░C	Cantilever	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			Flush Mount M3 Threaded Insert Top Opening	Single	Polyester Thermoplastic
EDAC Inc. 395-023-521-188	-40 °C	105 ░C	Cantilever	Solder	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			4-40 Flush Mount Threaded Insert Top Opening	Single	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-023-542-404	-40 °C	105 ░C	Cantilever	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1	3.96 mm	0.156 in	Top Mount Opening Unthreaded	Single	Polyester Thermoplastic
EDAC Inc. 395-023-558-412	-40 °C	105 ░C	Cantilever	Solder	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole Right Angle	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			Side Mount Opening Unthreaded	Single	Polyester Thermoplastic		3.25 mm	0.128 in
EDAC Inc. 395-023-520-412	-40 °C	105 ░C	Cantilever	Solder	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			Side Mount Opening Unthreaded	Single	Polyester Thermoplastic		3.25 mm	0.128 in
EDAC Inc. 395-023-521-688	-40 °C	105 ░C	Cantilever	Solder	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			4-40 Threaded Insert Top Mount Opening	Single	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-023-544-178	-40 °C	105 ░C	Cantilever	Wire Wrap	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			4-40 Flush Mount Threaded Insert Top Opening	Single	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-023-559-408	-40 °C	105 ░C	Cantilever	Solder	1	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	23	23	Through Hole Right Angle	Black	2.54 mm	0.1 in	Copper Alloy	Female	Non Specified - Single Edge	1			4-40 Threaded Insert Top Mount Opening	Single	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.55
LCSC	Piece	1	$ 15.78
		200	$ 6.10
		500	$ 5.89
		1000	$ 5.78

Description

General part information

395-023 Series

23 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
