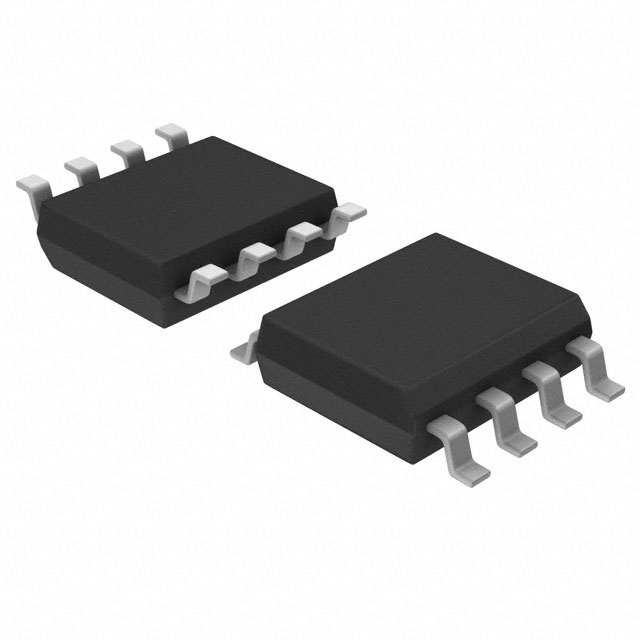

SP2525A-2EN-L/TR

Active

MaxLinear, Inc.

IC PWR SWITCH N-CHAN 1:1 8SOIC

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC PWR SWITCH N-CHAN 1:1 8SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SP2525A-2EN-L/TR	SP2525 Series

Current - Output (Max) [Max]	500 mA	500 mA
Fault Protection	Over Temperature, UVLO, Current Limiting (Fixed)	Over Temperature, UVLO, Current Limiting (Fixed)
Features	Status Flag	Status Flag
Input Type	Non-Inverting	Non-Inverting
Interface	On/Off	On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	High Side	High Side
Output Type	N-Channel	N-Channel
Package / Case	8-SOIC	8-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Ratio - Input:Output [custom]	1:1	1:1
Rds On (Typ)	70 mOhm	70 mOhm
Supplier Device Package	8-SOIC	8-SOIC
Switch Type	USB Switch	USB Switch
Voltage - Load [Max]	5.5 V	5.5 V
Voltage - Load [Min]	3 V	3 V
Voltage - Supply (Vcc/Vdd)	False	False

IC PWR SWITCH N-CHAN 1:1 8SOIC

Part	Supplier Device Package	Rds On (Typ)	Ratio - Input:Output [custom]	Interface	Features	Package / Case	Package / Case [y]	Package / Case [x]	Switch Type	Voltage - Supply (Vcc/Vdd)	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Output Configuration	Output Type	Number of Outputs	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Input Type
MaxLinear, Inc. SP2525A-2EN-L/TR	8-SOIC	70 mOhm	1:1	On/Off	Status Flag	8-SOIC	3.9 mm	0.154 in	USB Switch		Surface Mount	3 V	5.5 V	High Side	N-Channel	1	Current Limiting (Fixed), Over Temperature, UVLO	85 °C	-40 °C	500 mA	Non-Inverting
MaxLinear, Inc. SP2525A-1EN-L/TR	8-SOIC	70 mOhm	1:1	On/Off	Status Flag	8-SOIC	3.9 mm	0.154 in	USB Switch		Surface Mount	3 V	5.5 V	High Side	N-Channel	1	Current Limiting (Fixed), Over Temperature, UVLO	85 °C	-40 °C	500 mA	Non-Inverting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 N-Channel 500mA 8-SOIC
