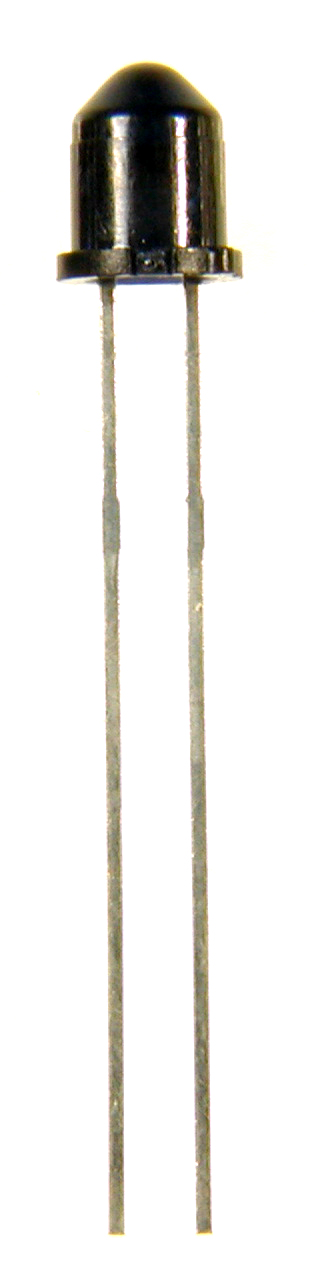

OP598B
ActiveTT Electronics/BI
SENSOR PHOTO 890NM TOP VIEW TO18
OP598B
ActiveTT Electronics/BI
SENSOR PHOTO 890NM TOP VIEW TO18
Description
General part information
OP598B
SENSOR PHOTO 890NM TOP VIEW TO18
Technical Specifications
Parameters and characteristics for this part
| Specification | OP598B |
|---|---|
| Current - Collector (Ic) (Max) | 0.05 mA |
| Current - Dark (Id) (Max) | 100 nA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | TO-18-2 |
| Power - Max | 250 mW |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Wavelength | 890 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
RoHs Letter for Juarez Site
Supplier Quality Requirements Manual
Declaration of Mineral Conflict Free Material for Juarez Site
Optoelectronics for Medical Tri-Fold
RoHs 3 Declaration Form for Juarez Site
Quality Manual for Juarez Site
Optoelectronics One Pager
App Note 209: Designing a "Wide-Gap Optical Switch" using an OP293/OP298 LED and OP593/OP598 Phototransistor
Sensors Product Selection Guide
App Note 213: Application Circuits for the Phototransistor Switch
OP593 598 798
Custom Optoelectronic Assemblies Tri-Fold
Juarez ISO 9001
REACH Compliance for Juarez Site
Lead Free and RoHs Compliance for Juarez Site
Conflict Minerals Policy for Juarez Site
