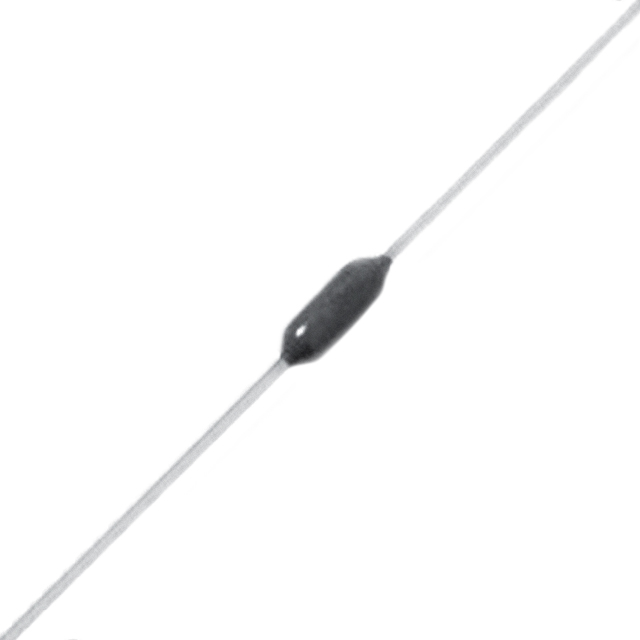

0471002.MRT1
ObsoleteLITTELFUSE
FUSE BRD MNT 2A 125VAC/VDC AXIAL
0471002.MRT1
ObsoleteLITTELFUSE
FUSE BRD MNT 2A 125VAC/VDC AXIAL
Description
General part information
0471002.MRT1
2 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 0471002.MRT1 |
|---|---|
| Approval Agency | UR, PSE, CSA |
| Breaking Capacity | 50 A |
| Current Rating | 2 A |
| DC Cold Resistance | 0.039 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 2.5 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.11 in |
| Size / Dimension Length | 0.28 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
