Specification	AT04-12PB-RD01

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

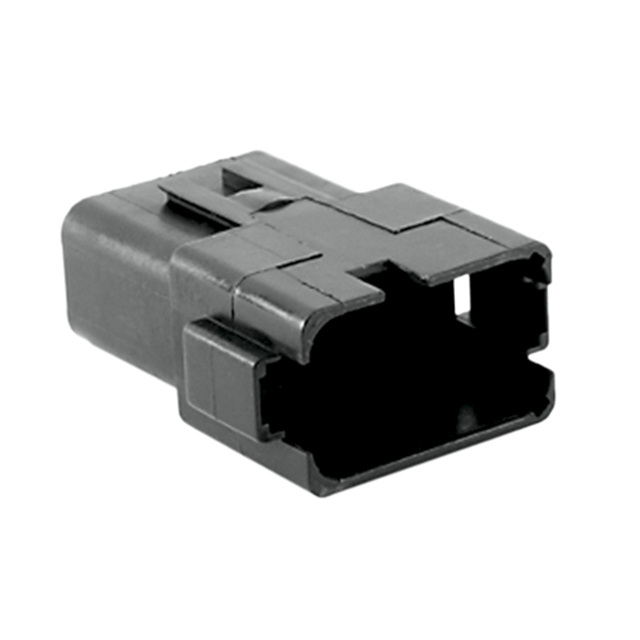

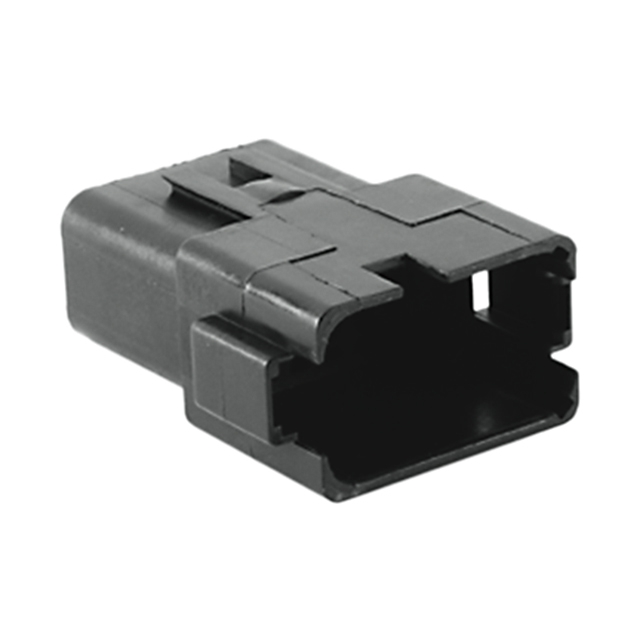

AT04-12PB Series

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Fastening Type	Insulation Material	Number of Positions	Features	Mounting Type	Number of Rows	Contact Termination	Color	Contact Type	Wire Type	Cable Termination	Contact Finish	Contact Material	Insulation Color	Contact Shape	Ingress Protection	Termination	Number of Positions Loaded	Insulation Height	Style	Current Rating	Shrouding	Contact Finish - Mating	Applications

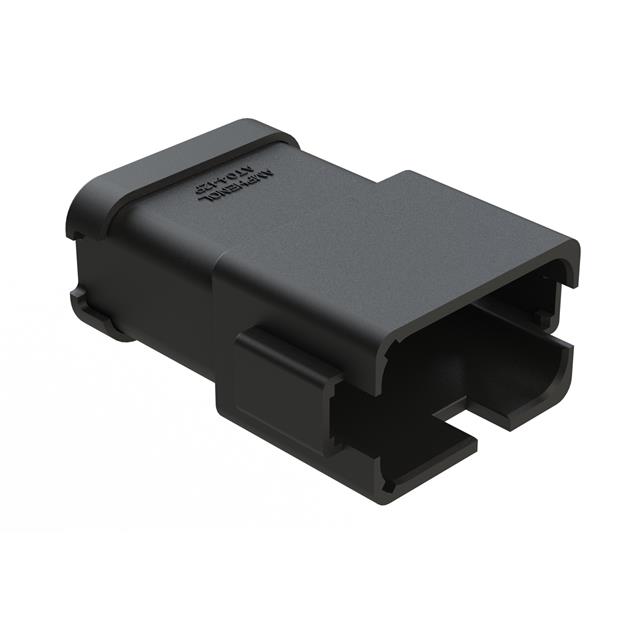

McGill Microwave Systems AT04-12PB-EC01	Contacts Not Included	125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Cap (Cover)	Free Hanging (In-Line)	2	Crimp	Black	Male Pin

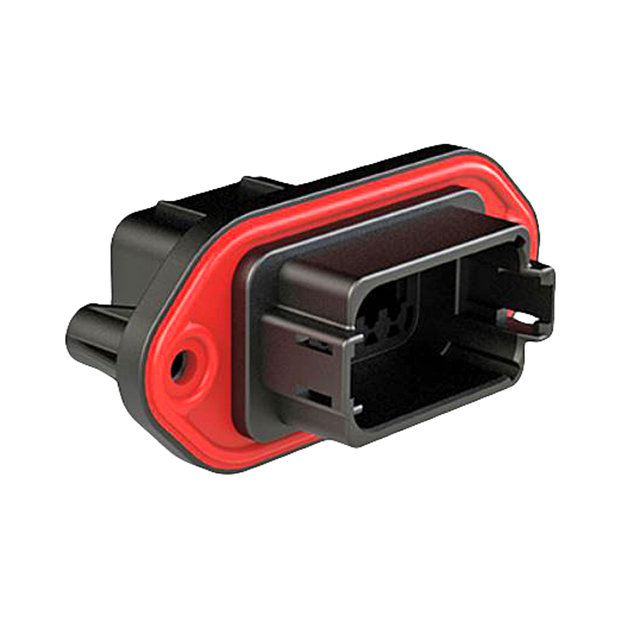

McGill Microwave Systems AT04-12PB-L012	Contacts Not Included	125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Mounting Flange Sealed	Panel Mount	2	Crimp	Black	Male Pin
McGill Microwave Systems AT04-12PB	Contacts Not Included	125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12		Free Hanging (In-Line)	2	Crimp	Black	Male Pin
McGill Microwave Systems AT04-12PB-P021				Receptacle	Latch Holder		12	Cap (Cover) IP67 Sealed	Free Hanging (In-Line)	2		Black	Male Pin	Discrete	Crimp	Nickel

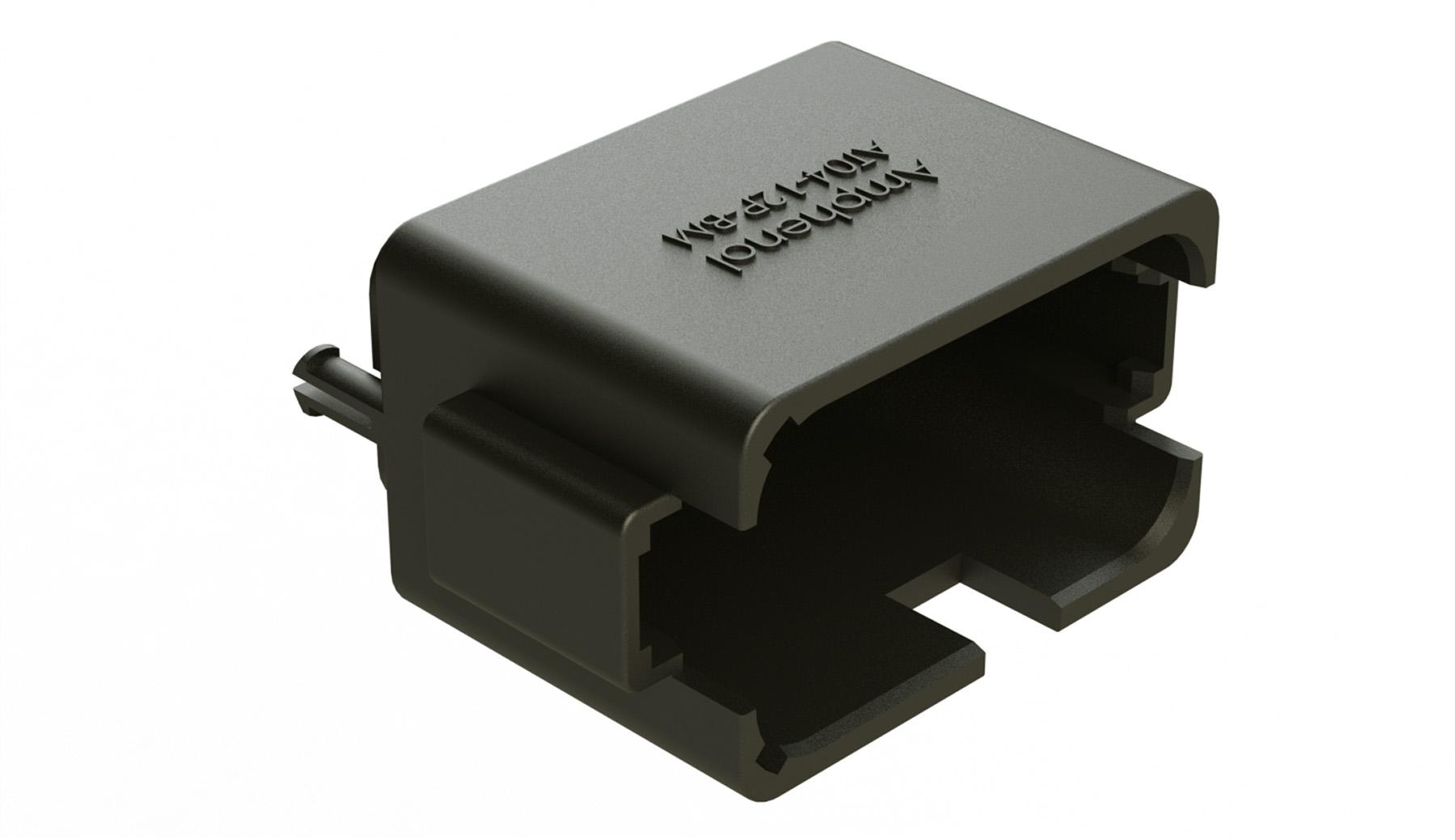

McGill Microwave Systems AT04-12PB-BM03		125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Board Lock	Through Hole	2			Male Pin				Copper Alloy	Black	Circular	IP67	Solder	All	0.835 in	Board Cable/Wire	13 A	Shrouded - 4 Wall	Nickel	Automotive General Purpose Industrial
McGill Microwave Systems AT04-12PB-PM13	Contacts Not Included	125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Cap (Cover) Mounting Flange Sealed	Panel Mount	2	Crimp	Black	Male Pin
McGill Microwave Systems AT04-12PB-PM12	Contacts Not Included	125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Mounting Flange Sealed	Panel Mount	2	Crimp	Black	Male Pin
McGill Microwave Systems AT04-12PB-CL03	Contacts Not Included	125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Mounting Flange Sealed	Panel Mount	2	Crimp	Black	Male Pin
McGill Microwave Systems AT04-12PB-BM04		125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Board Lock Potting Wall	Through Hole	2			Male Pin				Copper Alloy	Black	Circular	IP67	Solder	All	0.835 in	Board Cable/Wire	13 A	Shrouded - 4 Wall	Nickel	Automotive General Purpose Industrial
McGill Microwave Systems AT04-12PB-BL05	Contacts Not Included	125 °C	-55 °C	Receptacle	Latch Holder	Thermoplastic	12	Cap (Cover) Mounting Flange Sealed	Panel Mount	2	Crimp	Black	Male Pin
