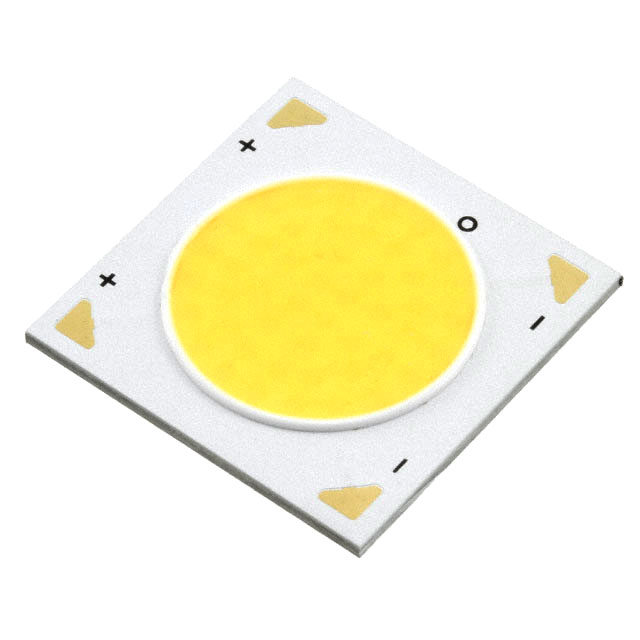

BXRE-27E3001-D-23

Obsolete

BRIDGELUX

LED COB V15 ARRAY WHT SQU 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-27E3001-D-23

Obsolete

BRIDGELUX

LED COB V15 ARRAY WHT SQU 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRE-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V15 Array White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-27E3001-D-23	BXRE-27 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80 - 98
Current - Max [Max]	1.4 A	1 - 950 mA
Current - Test	-	1.05 - 900 mA
Features	-	Dimming
Height [z]	1.7 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	15.2 mm	6.1 - 23.3 mm
Lumens/Watt @ Current - Test	119 lm/W	91 - 184 lm/W
Luminous Flux @ Current/Temperature	2994 lm	320 - 20808 lm
Size / Dimension [x]	21 mm	12.5 - 28 mm
Size / Dimension [y]	21 mm	12.5 - 28 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	36 V	8.4 - 57 V

BXRE-27 Series

LED COB V10 ARRAY WHT SQU 2700K

...

Part	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Type	Viewing Angle	CCT (K)	Configuration	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature	Current - Test	Lens Type	CRI (Color Rendering Index)	Height [z]	Temperature - Test	Features
BRIDGELUX BXRE-27G1000-B-23	9.9 mm	15.8 mm	15.8 mm	103 lm/W	Chip On Board (COB)	120 °	2700 K	Square	700 mA	26.5 V	Warm, White	956 lm	350 mA	Flat	90	1.7 mm
BRIDGELUX BXRE-27G1000-C-83	10.2 mm			138 lm/W	Chip On Board (COB)	120 °	2700 K	Square	1 A	30.7 V	Warm, White	1274 lm	300 mA	Flat	90	1.65 mm
BRIDGELUX BXRE-27G0400-A-23	6.1 mm	12.5 mm	12.5 mm	102 lm/W	Chip On Board (COB)	120 °	2700 K	Square	350 mA	18 V	Warm, White	320 lm	175 mA	Flat	90	1.7 mm
BRIDGELUX BXRE-27E1000-B-83	10.2 mm				Chip On Board (COB)	120 °	2700 K	Square	500 mA	34.2 V	Warm, White	1145 lm	200 mA	Flat	80	1.65 mm
BRIDGELUX BXRE-27E0400-A-23	6.1 mm	12.5 mm	12.5 mm	121 lm/W	Chip On Board (COB)	120 °	2700 K	Square	350 mA	18 V	Warm, White	381 lm	175 mA	Flat	80	1.7 mm
BRIDGELUX BXRE-27G1000-C-72	10.2 mm			110 lm/W	Chip On Board (COB)	120 °	2700 K	Square	720 mA	33.8 V	Warm, White	1348 lm	360 mA	Flat	90	1.7 mm	85 °C
BRIDGELUX BXRE-27G65F0-D-82	23.3 mm	28 mm	28 mm	173 lm/W	Chip On Board (COB)	120 °	2700 K	Square	1.05 A	33.7 V	Warm, White	6103 lm		Flat	90	1.65 mm	85 °C	Dimming
BRIDGELUX BXRE-27G4000-C-72	19.2 mm	24 mm	24 mm	114 lm/W	Chip On Board (COB)	120 °	2700 K	Square	2.34 A	34 V	Warm, White	4529 lm		Flat	90	1.7 mm	85 °C
BRIDGELUX BXRE-27G1000-C-73	10.2 mm			110 lm/W	Chip On Board (COB)		2700 K	Square	720 mA	34 V	Warm, White	1348 lm	360 mA	Flat	90	1.7 mm	85 °C
BRIDGELUX BXRE-27G2000-C-72	14 mm	19 mm	19 mm	114 lm/W	Chip On Board (COB)	120 °	2700 K	Square	1.26 A	33.9 V	Warm, White	2438 lm	630 mA	Flat	90	1.7 mm	85 °C
