PPA00005GN-08F
ActivePasternack
HIGH TEMPERATURE POWER CORD - C1
PPA00005GN-08F
ActivePasternack
HIGH TEMPERATURE POWER CORD - C1
Description
General part information
PPA00005GN-08F

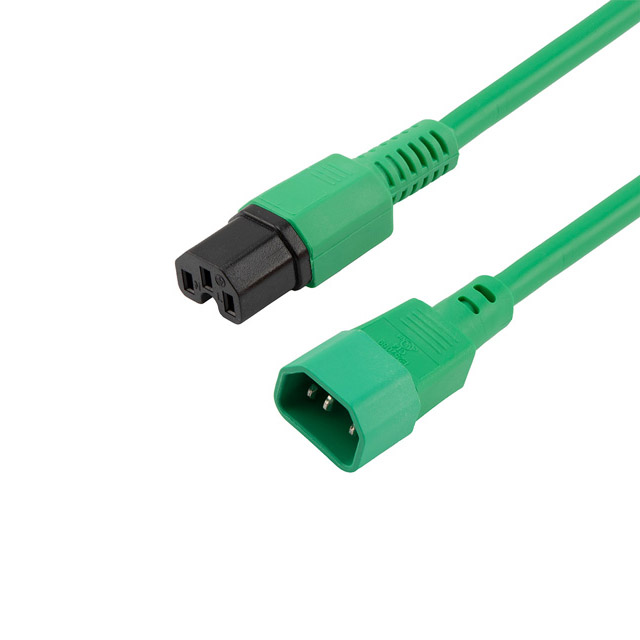

8.00' (2.44m) Power Cord Green IEC 320-C14 To IEC 320-C15 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | PPA00005GN-08F |
|---|---|
| 1st Connector | IEC 320-C14 |
| 2nd Connector | IEC 320-C15 |
| Color | Green |
| Cord Type | SJT |
| Current Rating | 15 A |
| Length | 96 in |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge | 14 AWG |
