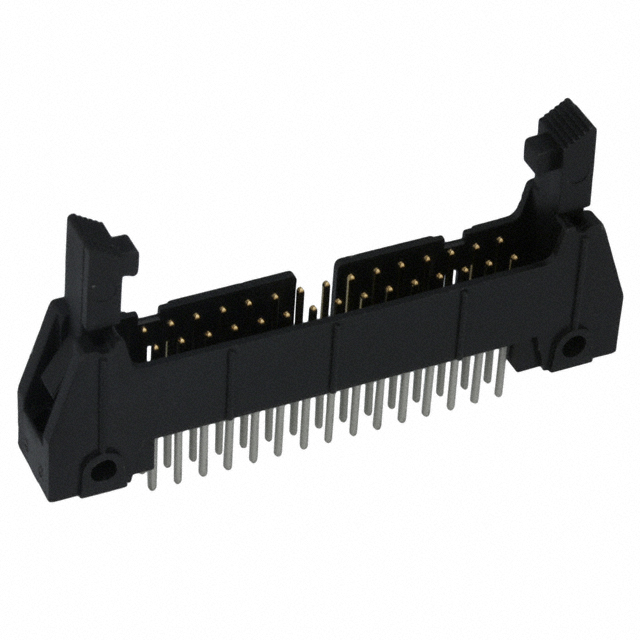

N3440-6303RB

Active

80000910192 N3440-6303RB =30/HDR/LL/STR/HT/.155/30AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3440-6303RB

Active

80000910192 N3440-6303RB =30/HDR/LL/STR/HT/.155/30AVG/ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3440-6303RB	N3440 Series

Connector Type	Header	Stackable (2), Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	3.94 mm	2.84 - 4.45 mm
Contact Length - Post	0.155 "	0.112 - 0.175 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long, Push-Pull, Latch Lock/Eject Hooks, Short
Insulation Color	Black	Black
Insulation Height	17.27 mm	8.64 - 17.27 mm
Insulation Height	0.68 in	0.34 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	30	30
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.695 in	0.652 - 0.695 in
Overall Contact Length	17.65 mm	16.56 - 17.65 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder, Press-Fit

N3440 Series

CONN HEADER R/A 30POS 2.54MM

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Rows	Style	Insulation Color	Termination	Contact Finish - Mating	Number of Positions Loaded	Connector Type	Fastening Type	Contact Length - Mating	Contact Length - Mating [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Material	Contact Finish - Post	Contact Type	Mounting Type	Insulation Height	Insulation Height	Number of Positions	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
3M N3440-L302RB	Square	200 µin	5.08 µm	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2	Board to Cable/Wire	Black	Solder	Gold	All	Header, Stackable (2)	Latch Lock/Eject Hooks, Long	6.1 mm	0.24 in	UL94 V-0	0.1 in	2.54 mm	2.84 mm	0.112 in	2.54 mm	0.1 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	Tin	Male Pin	Through Hole, Right Angle	0.66 in	16.76 mm
3M N3440-6002RB	Square	200 µin	5.08 µm	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2	Board to Cable/Wire	Black	Solder	Gold	All	Header	Push-Pull	6.1 mm	0.24 in	UL94 V-0	0.1 in	2.54 mm	2.84 mm	0.112 in	2.54 mm	0.1 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	Tin	Male Pin	Through Hole	0.68 in	17.27 mm	30	1.75 A	0.652 in	16.56 mm
3M N3440-5002RB	Square	200 µin	5.08 µm	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2	Board to Cable/Wire	Black	Solder	Gold	All	Header	Push-Pull	6.1 mm	0.24 in	UL94 V-0	0.1 in	2.54 mm	2.84 mm	0.112 in	2.54 mm	0.1 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	Tin	Male Pin	Through Hole, Right Angle	0.34 in	8.64 mm	30	1.75 A
3M N3440-620T02RB	Square	300 µin	7.62 µm	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2	Board to Cable/Wire	Black	Press-Fit, Solder	Gold	All	Header	Latch Lock/Eject Hooks, Short	6.1 mm	0.24 in	UL94 V-0	0.1 in	2.54 mm	4.45 mm	0.175 in	2.54 mm	0.1 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	Tin	Male Pin	Through Hole	0.68 in	17.27 mm	30	1.75 A			0.715 "	18.16 mm
3M N3440-5202RB	Square	200 µin	5.08 µm	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2	Board to Cable/Wire	Black	Solder	Gold	All	Header	Latch Lock/Eject Hooks, Short	6.1 mm	0.24 in	UL94 V-0	0.1 in	2.54 mm	2.84 mm	0.112 in	2.54 mm	0.1 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	Tin	Male Pin	Through Hole, Right Angle	0.34 in	8.64 mm	30	1.75 A
3M N3440-6303RB	Square	200 µin	5.08 µm	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2	Board to Cable/Wire	Black	Solder	Gold	All	Header	Latch Lock/Eject Hooks, Long	6.1 mm	0.24 in	UL94 V-0	0.1 in	2.54 mm	3.94 mm	0.155 "	2.54 mm	0.1 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	Tin	Male Pin	Through Hole	0.68 in	17.27 mm	30	1.75 A	0.695 in	17.65 mm
3M N3440-L002RB	Square	200 µin	5.08 µm	105 ░C	-55 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2	Board to Cable/Wire	Black	Solder	Gold	All	Header, Stackable (2)	Push-Pull	6.1 mm	0.24 in	UL94 V-0	0.1 in	2.54 mm	2.84 mm	0.112 in	2.54 mm	0.1 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Copper Alloy	Tin	Male Pin	Through Hole, Right Angle	0.66 in	16.76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.36
		10	$ 4.87
		250	$ 3.75
		500	$ 3.65
		1000	$ 3.11
Newark	Each	250	$ 4.23
		500	$ 3.93
		1000	$ 3.69

Description

General part information

N3440 Series

Connector Header Through Hole 30 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet
