XD5PA24
ActiveSCHNEIDER ELECTRIC

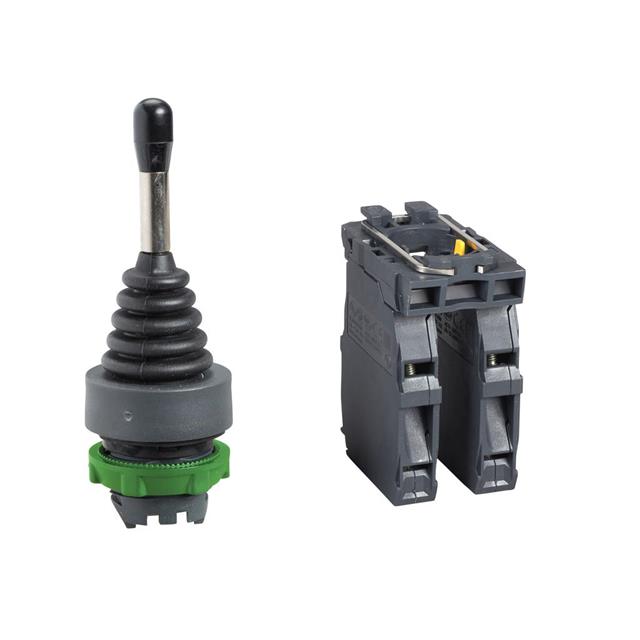

SWITCH JOYSTICK HARMONY XB5
XD5PA24
ActiveSCHNEIDER ELECTRIC
SWITCH JOYSTICK HARMONY XB5
Description
General part information
XD5PA24
Joystick, 2 - Axis Output
Technical Specifications
Parameters and characteristics for this part
| Specification | XD5PA24 |
|---|---|
| Actuator Type | Joystick |
| Electrical Life (Cycles) | 1000000 Cycles |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | 4-Way Directional |
| Termination Style | Screw Terminal |
| Type | Joystick, 2 - Axis |
