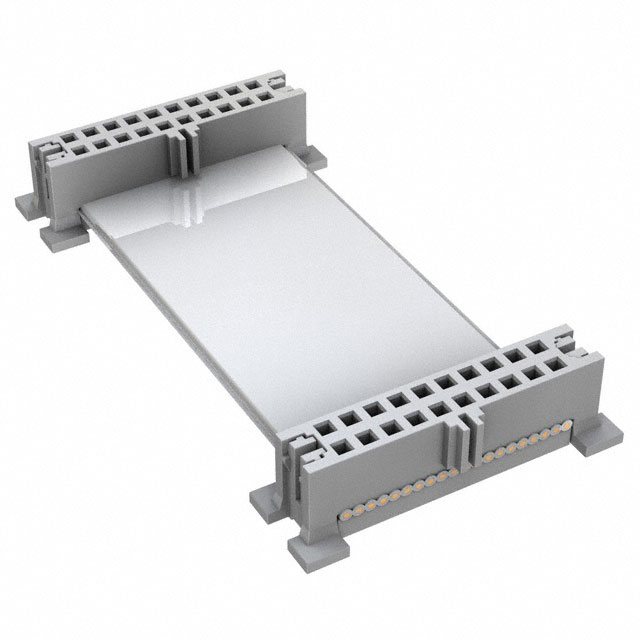

Specification	45120-010030-7700/20-C-36

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Polarizing Key
Length	3 ft
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.025 in
Pitch - Connector	0.05 in
Shielding	Unshielded

45120 Series

Part	Color	Number of Positions	Contact Finish Thickness	Shielding	Pitch - Connector	Length	Number of Rows	Cable Termination	Features	Pitch - Cable	Contact Finish	Connector Type	Wire Gauge	Contact Type	Pitch	Wire Type	Row Spacing	Mounting Type
3M Electronic Specialty 45120-010030-7700/20-H-12	Gray Ribbon	20	30 µin	Unshielded	0.05 in	12 in	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030		20	30 µin				2	IDC	Feed Through Polarizing Key		Gold	Receptacle	30 AWG	Female Socket	0.05 in	Ribbon Cable	0.05 in	Free Hanging (In-Line)
3M Electronic Specialty 45120-010030-7700/20-H-24	Gray Ribbon	20	30 µin	Unshielded	0.05 in	24 in	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030-7700/20-B-06	Gray Ribbon	20	30 µin	Unshielded	0.05 in	0.5 ft	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Cable
3M Electronic Specialty 45120-010030-7700/20-G-24	Gray Ribbon	20	30 µin	Unshielded	0.05 in	24 in	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030-7700/20-G-12	Gray Ribbon	20	30 µin	Unshielded	0.05 in	12 in	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030-3749/20-D-6	Gray Ribbon	20	30 µin	Unshielded	0.05 in	0.5 ft	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030-7700/20-A-12	Gray Ribbon	20	30 µin	Unshielded	0.05 in	12 in	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Cable
3M Electronic Specialty 45120-010030-7700/20-A-06	Gray Ribbon	20	30 µin	Unshielded	0.05 in	0.5 ft	2	IDC	Polarizing Key	0.025 in	Gold	Socket to Cable
3M Electronic Specialty 45120-010030-7700/20-D-06	Gray Ribbon	20	30 µin	Unshielded	0.05 in	0.5 ft	2	IDC	Polarizing Key	0.025 in	Gold	Reversed Socket to Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

45120-010030-7700/20-C-36 | Datasheet
