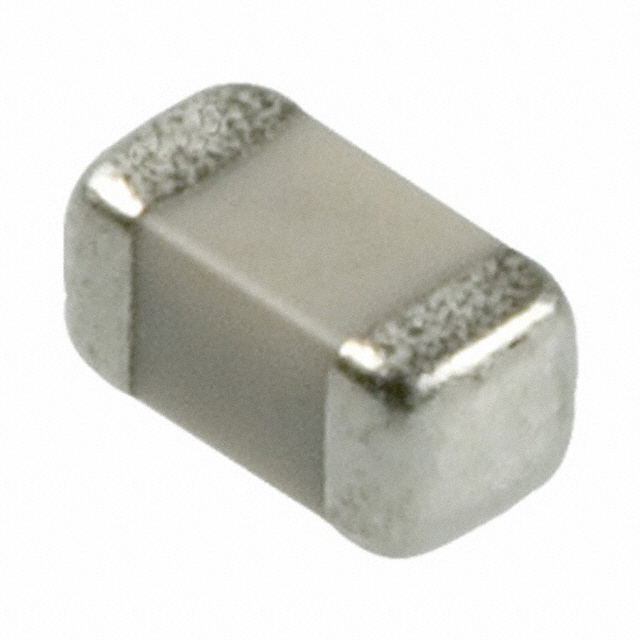

SQCSVA4R7BAT1A
ObsoleteKYOCERA AVX
CAP CER 4.7PF 250V 0603
SQCSVA4R7BAT1A
ObsoleteKYOCERA AVX
CAP CER 4.7PF 250V 0603
Description
General part information
SQCSVA4R7BAT1A
4.7 pF ±0.1pF 250V Ceramic Capacitor A 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SQCSVA4R7BAT1A |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 4.7 pF |
| Features | High Q, Low Loss |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.032 in |
| Temperature Coefficient | A |
| Thickness (Max) | 0.03 in |
| Tolerance | 0.1 pF |
| Voltage - Rated | 250 V |
