PC1004-220M-RC
ActiveAllied Components International
22UH 20% POWER CHIP INDUCTOR
PC1004-220M-RC
ActiveAllied Components International
22UH 20% POWER CHIP INDUCTOR
Description
General part information
PC1004-220M-RC

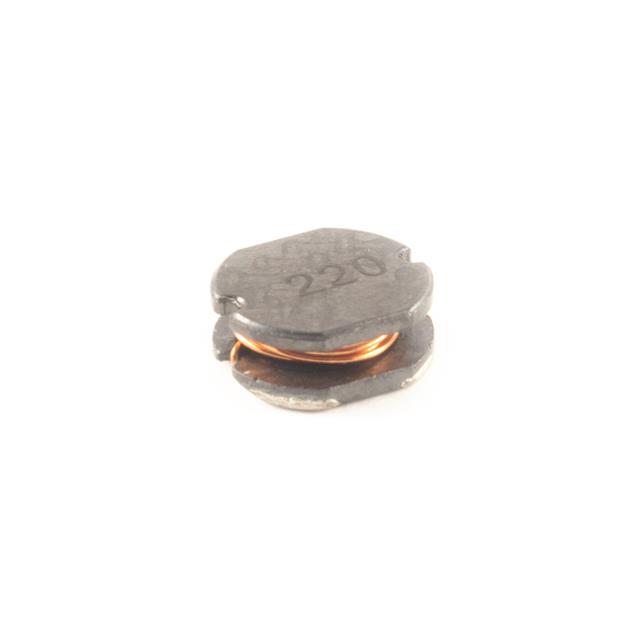

22 µH Unshielded Wirewound Inductor 1.6 A 90mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PC1004-220M-RC |
|---|---|
| Current Rating | 1.6 A |
| DC Resistance (DCR) (Max) | 90 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.354 in |
| Tolerance | 20 % |
| Type | Wirewound |
