General part information
Rocker Switches Rocker
Technical documentation and resources
Parameters and characteristics for this part

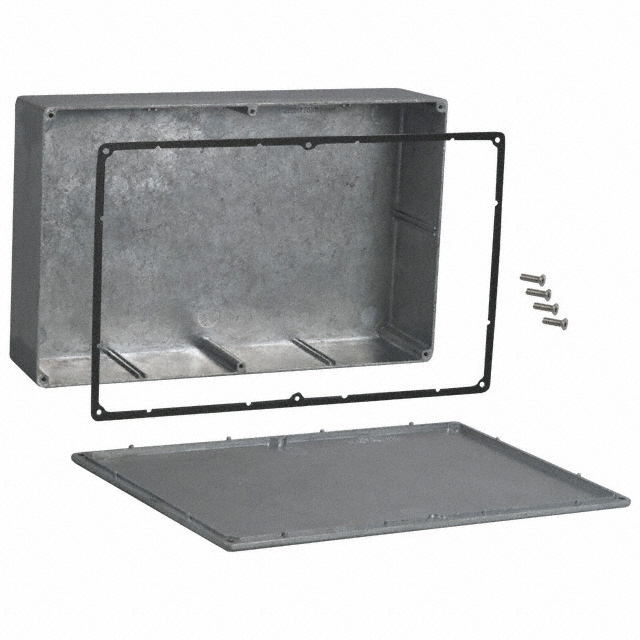

| Specification | CN-5714 |
|---|---|
| Area (L x W) | 74.5 in² |
| Area (L x W) | 481 cm² |
| Color | Natural |
| Container Type | Box |
| Design | Cover Included |
| Features | Sealed, Card Guides |
| Material | Metal, Aluminum |
| Ratings | NEMA 4, NEMA 4X, NEMA 12, NEMA 13, NEMA 1, NEMA 2, IP66 |
| Size / Dimension [x] | 10.81 in |
| Size / Dimension [x] | 274.57 mm |
| Size / Dimension [y] | 175.01 mm |
| Size / Dimension [y] | 6.89 in |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 952.5 g |
| Weight | 2.1 lb |
Rocker Switches Rocker
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Color | Material | Area (L x W) | Area (L x W) | Thickness | Thickness | Design | Weight | Weight | Container Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BUD INDUSTRIES CN-5714 | 10.81 in | 175.01 mm | 274.57 mm | 6.89 in | IP66, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 4X | Natural | Aluminum, Metal | 74.5 in² | 481 cm² | 2.54 mm | 0.1 in | Cover Included | 952.5 g | 2.1 lb | Box | Card Guides, Sealed |
