Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2900392 | 290039 Series |
|---|---|---|
| Approval Agency | DNV, UKCA, CE | DNV, UKCA, CE |
| Load Current | 3 A | 3 A |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output Type | DC | DC |
| Package / Case | Module | Module |
| Termination Style | Screw Terminal | Screw Terminal |
| Voltage - Input | - | 24 - 96 V |
| Voltage - Load [Max] | 140 V | 140 V |
| Voltage - Load [Min] | 12 V | 12 V |
290039 Series

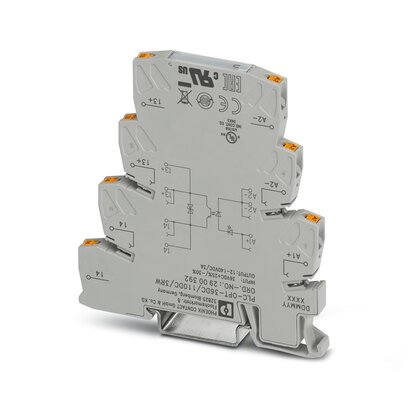

SSR RELAY SPST-NO 3A 12-140V
| Part | Approval Agency | Termination Style | Package / Case | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Load Current | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2900392 | CE, DNV, UKCA | Screw Terminal | Module | 12 V | 140 V | DIN Rail | DC | -25 °C | 60 °C | 3 A | |
Phoenix Contact 2900391 | CE, DNV, UKCA | Screw Terminal | Module | 12 V | 140 V | DIN Rail | DC | -25 °C | 60 °C | 3 A | 24 V |
Phoenix Contact 2900393 | CE, DNV, UKCA | Screw Terminal | Module | 12 V | 140 V | DIN Rail | DC | -25 °C | 60 °C | 3 A | 48 VDC |
Phoenix Contact 2900395 | CE, DNV, UKCA | Screw Terminal | Module | 12 V | 140 V | DIN Rail | DC | -25 °C | 60 °C | 3 A | 96 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.90 | |
| 10 | $ 55.98 | |||
| 50 | $ 51.50 | |||
| 100 | $ 47.58 | |||
Description
General part information
290039 Series
Solid State SPST-NO (1 Form A) Module
