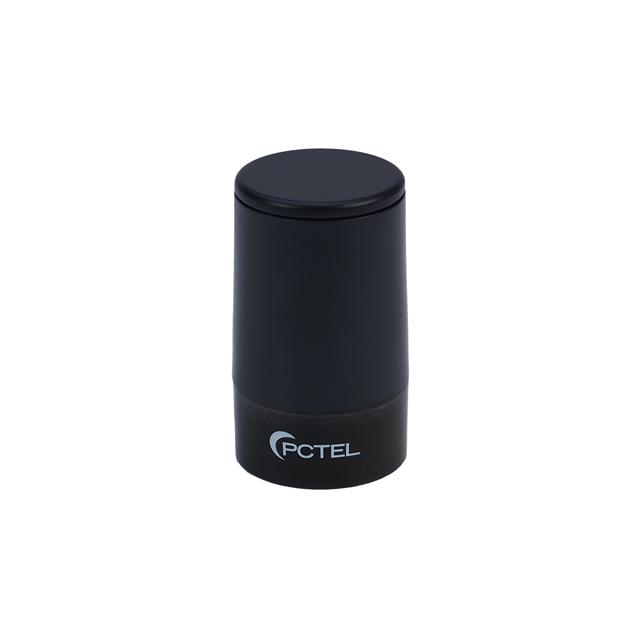

BMLPVDB800/1900

Active

Amphenol PCTEL

MULTIBAND LOW PROFILE ANTENNA

Search across all available documentation for this part.

Active

Amphenol PCTEL

MULTIBAND LOW PROFILE ANTENNA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMLPVDB800/1900	BMLPVDB800 Series

Antenna Type	Dome	Dome
Applications	LTE, LoRa, ISM, Wi-Fi, LMR/TETRA/P25, Bluetooth, LPWAN	LTE, LoRa, ISM, Wi-Fi, LMR/TETRA/P25, Bluetooth, LPWAN
Frequency (Center/Band)	1.85 GHz, 883 MHz	1.85 - 883 GHz
Frequency Range [Max]	960 MHz, 1.99 GHz	1.99 - 960 MHz
Frequency Range [Min]	1.71 GHz, 806 MHz	1.71 - 806 GHz
Gain	3 dBi, 4 dBi	3 - 4 dBi
Height (Max) [Max]	2.4 in	2.4 in
Height (Max) [Max]	60.96 mm	60.96 mm
Ingress Protection	IP67	IP67
Mounting Type	Connector Mount, Stud, Through Hole, NMO	Connector Mount, Stud, Through Hole, NMO
Number of Bands	2	2
Power - Max [Max]	100 W	100 W
RF Family/Standard	WiFi, Bluetooth, General ISM	WiFi, Bluetooth, General ISM
VSWR	2	2

RF ANT 883MHZ/2.105GHZ DOME CONN

Part	Frequency Range [Max]	Frequency Range [Min]	Gain	Height (Max) [Max]	Height (Max) [Max]	Power - Max [Max]	Mounting Type	Applications	Ingress Protection	Antenna Type	RF Family/Standard	Number of Bands	Frequency (Center/Band)	VSWR
Amphenol PCTEL BMLPVDB800/1900HD	1.99 GHz, 960 MHz	1.71 GHz, 806 MHz	3 dBi, 4 dBi	2.4 in	60.96 mm	100 W	Connector Mount, NMO, Stud, Through Hole	Bluetooth, ISM, LMR/TETRA/P25, LoRa, LPWAN, LTE, Wi-Fi	IP67	Dome	Bluetooth, General ISM, WiFi	2	1.85 GHz, 883 MHz	2
Amphenol PCTEL BMLPVDB800/1900	1.99 GHz, 960 MHz	1.71 GHz, 806 MHz	3 dBi, 4 dBi	2.4 in	60.96 mm	100 W	Connector Mount, NMO, Stud, Through Hole	Bluetooth, ISM, LMR/TETRA/P25, LoRa, LPWAN, LTE, Wi-Fi	IP67	Dome	Bluetooth, General ISM, WiFi	2	1.85 GHz, 883 MHz	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 30.74

General part information

RF ANTENNA Bluetooth, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi Dome Connector Mount, NMO, Stud, Through Hole
