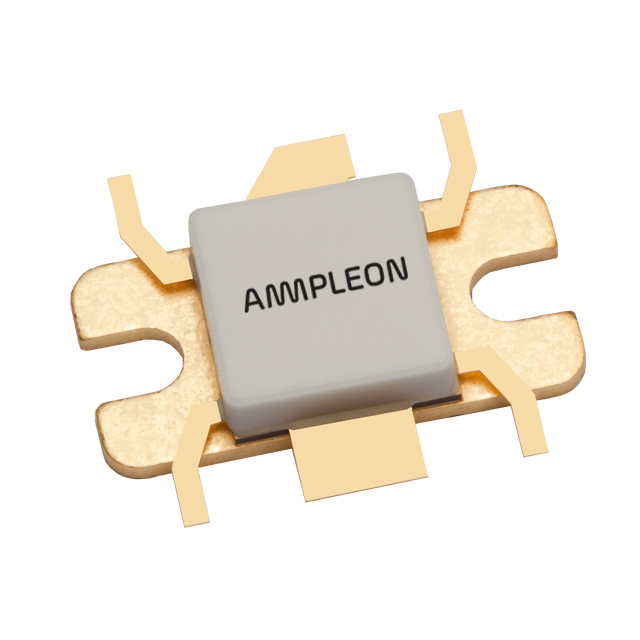

BLF6G27L-50BN,112
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V CDFM6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLF6G27L-50BN,112
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V CDFM6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BLF6G27L-50BN,112 | BLF6G27 Series |
|---|---|---|
| Configuration | Common Source, Dual | Common Source, Dual |
| Current - Test | - | 1.2 - 600 mA |
| Current Rating (Amps) | - | 3.5 - 34 A |
| Frequency | - | 2.7 GHz |
| Frequency [Max] | 2.7 GHz | 2.7 GHz |
| Frequency [Min] | 2.5 GHz | 2.5 GHz |
| Gain | 16.5 dBi | 16 - 19 dB |
| Mounting Type | Chassis Mount | Surface Mount, Chassis Mount |
| Package / Case | SOT-1112A | SOT-975C, SOT-502B, SOT-608B, SOT-1112A, SOT-975B, SOT-608A |
| Power - Output | 3 W | 2 - 20 W |
| Supplier Device Package | CDFM6 | CDFM2, SOT502B, CDFM6 |
| Voltage - Rated | 65 V | 65 V |
| Voltage - Test | 28 V | 28 - 32 V |
BLF6G27 Series
RF MOSFET LDMOS 28V CDFM2
| Part | Current Rating (Amps) | Package / Case | Frequency [Max] | Frequency [Min] | Supplier Device Package | Mounting Type | Gain | Voltage - Test | Current - Test | Voltage - Rated | Power - Output | Frequency | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. BLF6G27-10G,118 | 3.5 A | SOT-975C | 2.7 GHz | 2.5 GHz | CDFM2 | Surface Mount | 19 dB | 28 V | 130 mA | 65 V | 2 W | ||
Ampleon USA Inc. BLF6G27LS-135,118 | 34 A | SOT-502B | 2.7 GHz | 2.5 GHz | SOT502B | Chassis Mount | 16 dB | 32 V | 1.2 A | 65 V | 20 W | ||
Ampleon USA Inc. BLF6G27S-45,118 | 20 A | SOT-608B | CDFM2 | Chassis Mount | 18 dBi | 28 V | 350 mA | 65 V | 7 W | 2.7 GHz | |||
Ampleon USA Inc. BLF6G27L-50BN,112 | SOT-1112A | 2.7 GHz | 2.5 GHz | CDFM6 | Chassis Mount | 16.5 dBi | 28 V | 65 V | 3 W | Common Source, Dual | |||
Ampleon USA Inc. BLF6G27L-50BN,118 | SOT-1112A | 2.7 GHz | 2.5 GHz | CDFM6 | Chassis Mount | 16.5 dBi | 28 V | 65 V | 3 W | Common Source, Dual | |||
Ampleon USA Inc. BLF6G27-10,118 | 3.5 A | SOT-975B | 2.7 GHz | 2.5 GHz | CDFM2 | Chassis Mount | 19 dB | 28 V | 130 mA | 65 V | 2 W | ||
Ampleon USA Inc. BLF6G27LS-75,112 | 18 A | SOT-502B | SOT502B | Chassis Mount | 28 V | 600 mA | 65 V | 9 W | |||||
Ampleon USA Inc. BLF6G27-45,135 | 20 A | SOT-608A | CDFM2 | Chassis Mount | 18 dBi | 28 V | 350 mA | 65 V | 7 W | 2.7 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BLF6G27 Series
RF Mosfet 28 V 430 mA 2.5GHz ~ 2.7GHz 16.5dB 3W CDFM6
