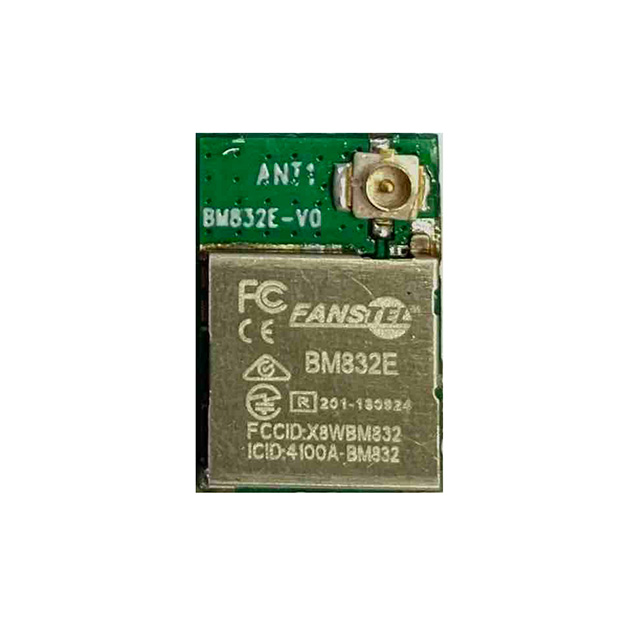

BM832E

Active

Fanstel Corp.

RF TXRX MOD BLUETOOTHU.FL SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD BLUETOOTHU.FL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BM832E	BM832 Series

Antenna Type	Antenna Not Included, U.FL	PCB Trace, Antenna Not Included, U.FL
Data Rate	1 Mbps	1 Mbps
For Use With/Related Products	-	BM832, BM832E, BM832A
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	24 - 192 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	47-SMD Module	47-SMD Module
Power - Output	4 dBm	4 dBm
Protocol	Bluetooth v5.0	Bluetooth v5.0
RF Family/Standard	Bluetooth	Bluetooth
Serial Interfaces	UART, GPIO, SPI, I2S, ADC, I2C, PWM	UART, GPIO, SPI, I2S, ADC, I2C, PWM
Supplied Contents	-	Board(s)
Type	-	Transceiver, Bluetooth® 5.x (BLE), Bluetooth® 5.x
Utilized IC / Part	nRF52832	nRF52832
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.7 V	1.7 V

RF TXRX MOD BT PCB TH SMD

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Antenna Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Protocol	Package / Case	RF Family/Standard	Serial Interfaces	Memory Size	Mounting Type	Frequency	Supplied Contents	Type	For Use With/Related Products
Fanstel Corp. BM832A	3.6 V	1.7 V	4 dBm	PCB Trace	1 Mbps	85 °C	-40 °C	nRF52832	Bluetooth v5.0	47-SMD Module	Bluetooth	ADC, GPIO, I2C, I2S, PWM, SPI, UART	24 kB, 192 kB	Surface Mount	2.4 GHz
Fanstel Corp. EV-BM832															2.4 GHz	Board(s)	Bluetooth® 5.x (BLE), Transceiver	BM832
Fanstel Corp. EV-BM832E															2.4 GHz	Board(s)	Bluetooth® 5.x, Transceiver	BM832E
Fanstel Corp. EV-BM832A															2.4 GHz	Board(s)	Bluetooth® 5.x (BLE), Transceiver	BM832A
Fanstel Corp. BM832E	3.6 V	1.7 V	4 dBm	Antenna Not Included, U.FL	1 Mbps	85 °C	-40 °C	nRF52832	Bluetooth v5.0	47-SMD Module	Bluetooth	ADC, GPIO, I2C, I2S, PWM, SPI, UART		Surface Mount	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
