| Adapter Series | - | HD to BNC, BNC, BNC to BNC, Dual |
| Adapter Type | - | Plug to Jack |
| Body Finish | Nickel | Nickel, Tin |
| Body Material | Brass | Brass, Phosphor Bronze, Zinc Die Cast |
| Cable Group | - | 140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209, Belden 4731P, Belden 4731R, Canare L-5.5CUHD, RG-6, Belden 4855R, 188, 188A, 316, LMR-100, M17/119-RG174, RG-174, AT&T 735, 735A, Belden 735A1, Times Fiber 210, Belden 1505A, AT&T 734, 734A, 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B, Belden 4505P, 1694A, Belden 1694, 9248, AT&T KS19224-L2, Canare L-3.3CUHD, Belden 4505R, Belden 4794R, Belden 1794A, Belden 4694R, 4855R, Belden 1855A, 195, Belden 1855, 180B, 1865A, 180A, 180, RG-122 |
| Center Contact Material | Beryllium Copper | Brass, Beryllium Copper, Phosphor Bronze |
| Center Contact Plating | Gold | Gold |
| Center Gender | - | Female to Female |
| Connector Style | BNC | BNC, Mini, HD |
| Connector Type | Female Socket, Jack | Male Pin, Plug, Female Socket, Jack, Receptacle |
| Contact Termination | Solder | Crimp, Solder, Solder Cup |
| Conversion Type | - | Between Series, Same Series |
| Convert From (Adapter End) | - | BNC Jack, Female Socket, BNC Plug, Male Pin |
| Convert To (Adapter End) | - | BNC HD Plug, Male Pin, BNC Jack, Female Socket (2) |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polypropylene (PP) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Extended Insulation, Board Lock, Isolated |
| Frequency - Max [Max] | 12 GHz | 1 - 18 GHz |
| Housing Color | Silver | Silver, White |
| Impedance | 75 Ohms | 75 Ohms |

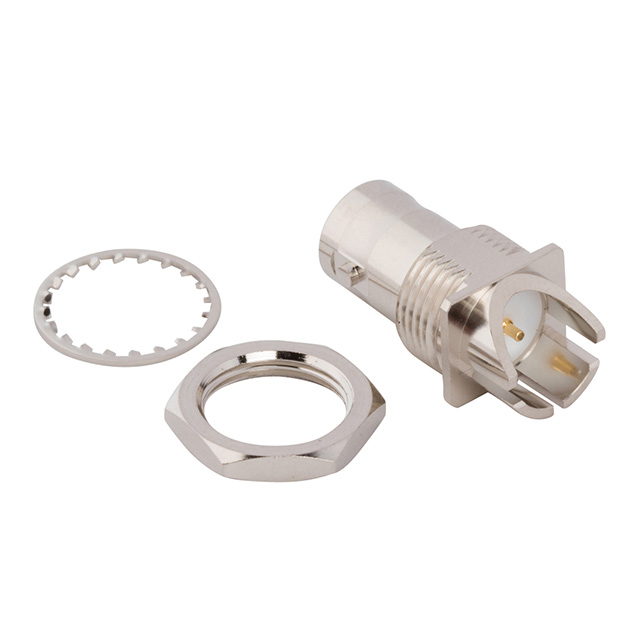

| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Ferrule, 1 Contact, 1 Connector, 1 Nut, 1 Lockwasher, 1 Insulator, 1 End Cap, 1 Sleeve, 1 Spacer, 1 Gasket |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Insertion Loss | - | 0.1 - 0.2 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, End Launch, Board Edge | Free Hanging (In-Line), Right Angle, Through Hole, Right Angle, Through Hole, Panel Mount, End Launch, Board Edge |
| Number of Ports | 1 | 1 - 2 |
| Operating Temperature [Max] | 165 °C | 75 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -10 ░C |
| Shield Termination | Solder | Crimp, Solder |
| Style | - | Straight, T-Shape |
| Voltage Rating | - | 500 V |
