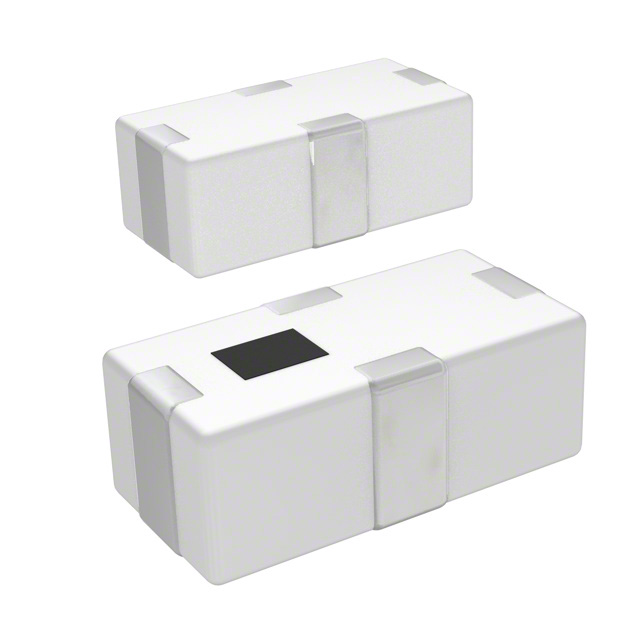

DPX165950DT-8018A1

DPX165950DT-8018A1

Active
TDK Corporation

RF DIPLEXER 2.45/5.425GHZ 0603

Find alt
DPX165950DT-8018A1

DPX165950DT-8018A1

Active
TDK Corporation

RF DIPLEXER 2.45/5.425GHZ 0603

Find alt

Description

General part information

DPX165950DT-8018A1

RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0603 (1608 Metric), 4 PC Pad

Technical Specifications

Parameters and characteristics for this part

SpecificationDPX165950DT-8018A1
Frequency Bands (High) Maximum5.95 GHz
Frequency Bands (High) Minimum4.9 GHz
Frequency Bands (Low) Maximum2.5 GHz
Frequency Bands (Low) Minimum2.4 GHz
High Band Attenuation (Max)26 dB
High Band Attenuation (Min)20 dB
Low Band Attenuation (Max)24 dB
Low Band Attenuation (Min)20 dB
Mounting TypeSurface Mount
Package Name0603
Pad Count4 PC Pad
Return Loss (High Band)12 dB
Return Loss (Low Band)14 dB
TypeDiplexer
