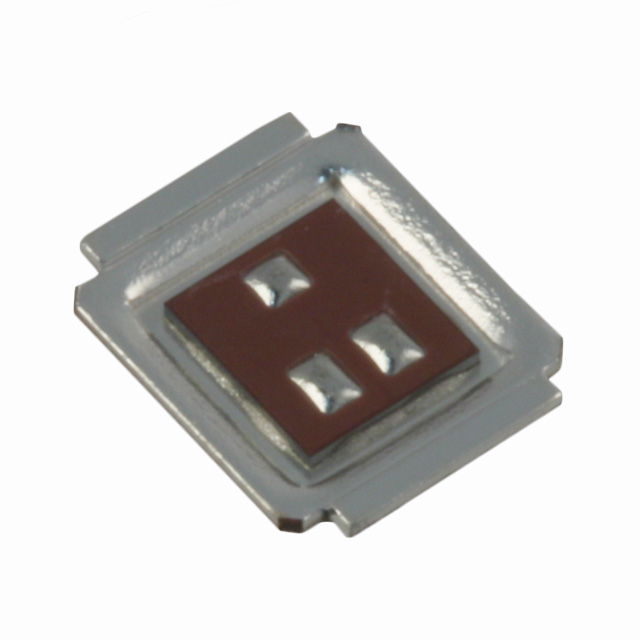

IRF8301MTRPBF

Obsolete

Infineon Technologies

STRONGIRFET™ N-CHANNEL POWER MOSFET ; DIRECTFET™ M PACKAGE; 1.5 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IR Part Numbering System

IRF8301MTRPBF

Obsolete

Infineon Technologies

STRONGIRFET™ N-CHANNEL POWER MOSFET ; DIRECTFET™ M PACKAGE; 1.5 MOHM;

Deep-Dive with AI

DocumentsDatasheet IR Part Numbering System

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRF8301MTRPBF

Current - Continuous Drain (Id) @ 25°C	34 A, 192 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	77 nC
Input Capacitance (Ciss) (Max) @ Vds	6140 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	DirectFET™ Isometric MT
Power Dissipation (Max)	2.8 W, 89 W
Rds On (Max) @ Id, Vgs [Max]	1.5 mOhm
Supplier Device Package	DIRECTFET™ MT
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.35 V

IRF8301 Series

Part	Mounting Type	Vgs(th) (Max) @ Id	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max)	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Vgs (Max)	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs [Max]	Current - Continuous Drain (Id) @ 25°C
Infineon Technologies IRF8301MTRPBF	Surface Mount	2.35 V	DirectFET™ Isometric MT	77 nC	2.8 W 89 W	N-Channel	6140 pF	30 V	MOSFET (Metal Oxide)	150 °C	-40 °C	20 V	DIRECTFET™ MT	4.5 V 10 V	1.5 mOhm	34 A 192 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IRF8301 Series

The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
