R-CX-1101-36

Active

Remington Industries

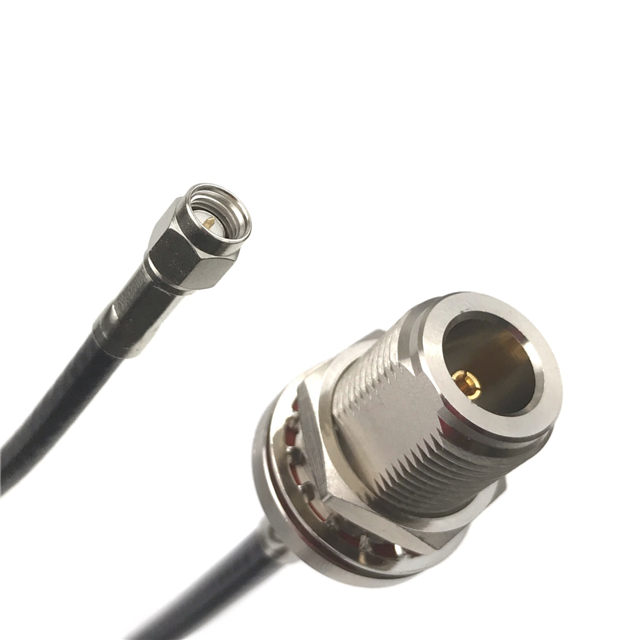

CBL ASSY SMA-NTYPE PLUG-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R-CX-1101-36

Active

Remington Industries

CBL ASSY SMA-NTYPE PLUG-JACK 36"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.10
		25	$ 71.35
		50	$ 67.59
		100	$ 63.84

Description

General part information

R-CX-110 Series

Cable Assembly Coaxial SMA to N-Type RG-58C 36.00" (914.40mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R-CX-1101-36	R-CX-110 Series

1st Connector	SMA Plug	SMA Plug, N-Type Jack
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Male	Male, Female
2nd Connector	N-Type Jack	N-Type Jack, SMA Plug
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount, Free Hanging (In-Line)
2nd Contact Gender	Female	Female, Male
Cable Type	RG-58C	RG-58C
Color	Black	Black
Features	Shielded	Shielded
Frequency - Max [Max]	1 GHz	1 - 5 GHz
Length	91.44 cm	1.5 - 1200 m
Length	36 in	5 - 96 ft
Length	-	4 - 50 yd
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to N-Type	SMA to N-Type, SMA to SMA, N-Type to N-Type

R-CX-110 Series

CBL ASSY SMA-NTYPE PLUG-JACK 15'

Part	2nd Connector Mounting Feature	Color	Frequency - Max [Max]	2nd Connector	1st Contact Gender	Length	Length	Length	Overall Impedance	Cable Type	1st Connector	Operating Temperature [Min]	Operating Temperature [Max]	Style	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Features	1st Connector Mounting Feature
Remington Industries R-CX-1101-180	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Male	15 ft	5 yd	4.6 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to N-Type	Female	Panel Mount	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-240		Black	5 GHz	SMA Plug	Male	20 ft	20 ft	6.1 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-144		Black	5 GHz	SMA Plug	Male				50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1102-144	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Female				50 Ohms	RG-58C	N-Type Jack	-40 °C	80 C	N-Type to N-Type	Female	Panel Mount	Panel Mount	Shielded	Bulkhead - Front Side Nut
Remington Industries R-CX-1101-300	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Male	25 ft	25 ft	7.6 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to N-Type	Female	Panel Mount	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-96		Black	5 GHz	SMA Plug	Male	96 "	8 '	2.4 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-180		Black	5 GHz	SMA Plug	Male	15 ft	5 yd	4.6 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1102-240	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Female	20 ft	20 ft	6.1 m	50 Ohms	RG-58C	N-Type Jack	-40 °C	80 C	N-Type to N-Type	Female	Panel Mount	Panel Mount	Shielded	Bulkhead - Front Side Nut
Remington Industries R-CX-1102-96	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Female	96 "	8 '	2.4 m	50 Ohms	RG-58C	N-Type Jack	-40 °C	80 C	N-Type to N-Type	Female	Panel Mount	Panel Mount	Shielded	Bulkhead - Front Side Nut
Remington Industries R-CX-1100-60		Black	5 GHz	SMA Plug	Male	5 '	5 ft	1.5 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
