Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ISOBLOCK I-FG-4C (6A 5V) | ISOBLOCK I Series |
|---|---|---|
| Accuracy | 0.2 % | 0.2 % |
| Input Range | - | 200 mV |
| Input Range [Max] | 6 A | 6 - 60 A |
| Input Range [Min] | 0 A | 0 A |
| Isolation | 1200 V | 1200 - 2000 V |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output | 5 V | 5 - 10 V |
| Response Time | 5 µs | 2.8 - 5 µs |
| Termination Style | Spring Terminal | Spring Terminal, Screw Terminal |
| Type | Current Transducer | Current Transducer |
| Voltage - Supply [Max] | 28 V | 28 V |
| Voltage - Supply [Min] | 9 V | 9 V |
ISOBLOCK I Series
TRANSDUCER CURRENT 9-28VDC
| Part | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Isolation | Type | Output | Accuracy | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Input Range [Max] | Input Range [Min] | Input Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Verivolt LLC ISOBLOCK I-FG-4C (15A 5V) | Spring Terminal | 28 V | 9 V | DIN Rail | 1200 V | Current Transducer | 5 V | 0.2 % | 5 µs | 70 °C | -25 °C | 15 A | 0 A | |
Verivolt LLC ISOBLOCK I-FG-4C (6A 5V) | Spring Terminal | 28 V | 9 V | DIN Rail | 1200 V | Current Transducer | 5 V | 0.2 % | 5 µs | 70 °C | -25 °C | 6 A | 0 A | |
Verivolt LLC ISOBLOCK I-ST-1C (200MV 10V) | Screw Terminal, Spring Terminal | 28 V | 9 V | DIN Rail | 2000 V | Current Transducer | 10 V | 0.2 % | 2.8 µs | 70 °C | -25 °C | 200 mV | ||
Verivolt LLC ISOBLOCK I-FG-1C (15A 10V) | Spring Terminal | 28 V | 9 V | DIN Rail | 1200 V | Current Transducer | 10 V | 0.2 % | 5 µs | 70 °C | -25 °C | 15 A | 0 A | |
Verivolt LLC ISOBLOCK I-ST-1C (50A 10V) | Screw Terminal, Spring Terminal | 28 V | 9 V | DIN Rail | 2000 V | Current Transducer | 10 V | 0.2 % | 2.8 µs | 70 °C | -25 °C | 50 A | 0 A | |
Verivolt LLC ISOBLOCK I-ST-1C (20A 10V) | Screw Terminal, Spring Terminal | 28 V | 9 V | DIN Rail | 2000 V | Current Transducer | 10 V | 0.2 % | 2.8 µs | 70 °C | -25 °C | 20 A | 0 A | |
Verivolt LLC ISOBLOCK I-FG-1C (25A 5V) | Spring Terminal | 28 V | 9 V | DIN Rail | 1200 V | Current Transducer | 5 V | 0.2 % | 5 µs | 70 °C | -25 °C | 25 A | 0 A | |
Verivolt LLC ISOBLOCK I-ST-1C (60A 10V) | Screw Terminal, Spring Terminal | 28 V | 9 V | DIN Rail | 2000 V | Current Transducer | 10 V | 0.2 % | 2.8 µs | 70 °C | -25 °C | 60 A | 0 A | |
Verivolt LLC ISOBLOCK I-ST-1C (30A 10V) | Screw Terminal, Spring Terminal | 28 V | 9 V | DIN Rail | 2000 V | Current Transducer | 10 V | 0.2 % | 2.8 µs | 70 °C | -25 °C | |||
Verivolt LLC ISOBLOCK I-FG-1C (50A 10V) | Screw Terminal, Spring Terminal | 28 V | 9 V | DIN Rail | 1200 V | Current Transducer | 10 V | 0.2 % | 5 µs | 70 °C | -25 °C | 50 A | 0 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 744.55 | |
Description
General part information

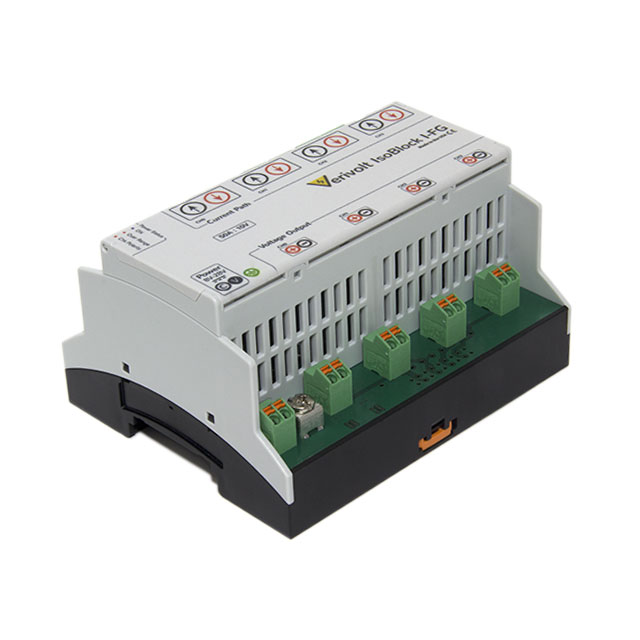

ISOBLOCK I Series
Current Transducer 0 ~ 6A Input ±5V Output 9 ~ 28VDC DIN Rail
