PEC31SGAN

Active

Sullins Connector Solutions

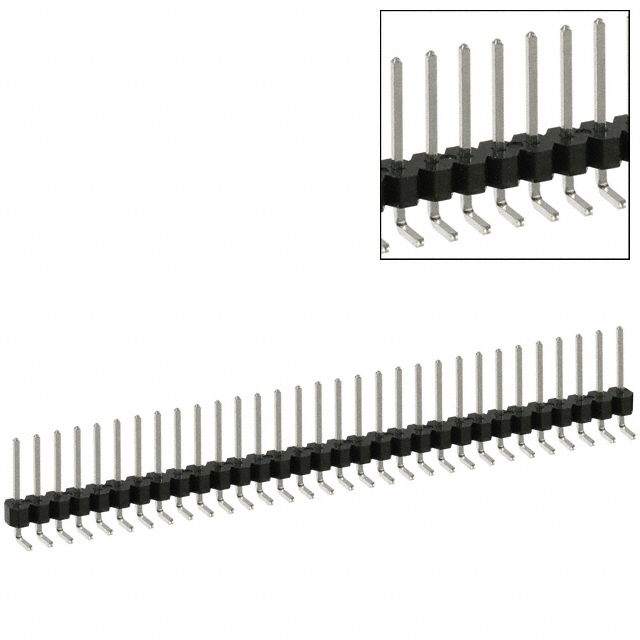

CONN HEADER R/A 31POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC31SGAN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	31
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC31 Series

Part	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Shrouding	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Style	Mounting Type	Number of Rows	Termination	Insulation Material	Insulation Height	Insulation Height	Contact Material	Contact Shape	Material Flammability Rating	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length
Sullins Connector Solutions PEC31SFAN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.318 "	8.08 mm	31	0.12 in	3.05 mm	Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole	1	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull	0.538 "	13.67 mm
Sullins Connector Solutions PEC31SABN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.23 in		31			Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole	1	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull	0.56 in	14.22 mm	5.84 mm	0.23 in	5.84 mm
Sullins Connector Solutions PEC31SGAN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.318 "	8.08 mm	31			Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole Right Angle	1	Solder	Polybutylene Terephthalate (PBT)	0.14 in	3.56 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull				0.1 in	2.54 mm
Sullins Connector Solutions PEC31DBEN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.23 in		62			Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole Right Angle	2	Solder	Polybutylene Terephthalate (PBT)	0.24 in	6.1 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull			5.84 mm	0.5 in	12.7 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC31SFBN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.318 "	8.08 mm	31			Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole	1	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull	0.638 in	16.21 mm		0.22 in	5.58 mm
Sullins Connector Solutions PEC31DGBN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.318 "	8.08 mm	62	0.2 in	5.08 mm	Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole Right Angle	2	Solder	Polybutylene Terephthalate (PBT)	0.24 in	6.1 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull						2.54 mm	0.1 in
Sullins Connector Solutions PEC31DAHN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.23 in		62	0.82 in	20.83 mm	Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole	2	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull	1.15 in	29.21 mm	5.84 mm			2.54 mm	0.1 in
Sullins Connector Solutions PEC31SACN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.23 in		31	0.32 in	8.13 mm	Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole	1	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull		0.65 in	5.84 mm					16.51 mm
Sullins Connector Solutions PEC31SADN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.23 in		31	0.42 in	10.67 mm	Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole	1	Solder	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull	0.75 in	19.05 mm	5.84 mm
Sullins Connector Solutions PEC31SBEN	0.1 in	2.54 mm	Black	2.54 µm	100 µin	0.23 in		31			Tin	Unshrouded	3 A	2.54 çm	100 çin	All	Board to Board Cable	Through Hole Right Angle	1	Solder	Polybutylene Terephthalate (PBT)	0.14 in	3.56 mm	Phosphor Bronze	Square	UL94 V-0	Breakaway Header	Male Pin	125 °C	-65 ░C	Push-Pull			5.84 mm	0.5 in	12.7 mm
