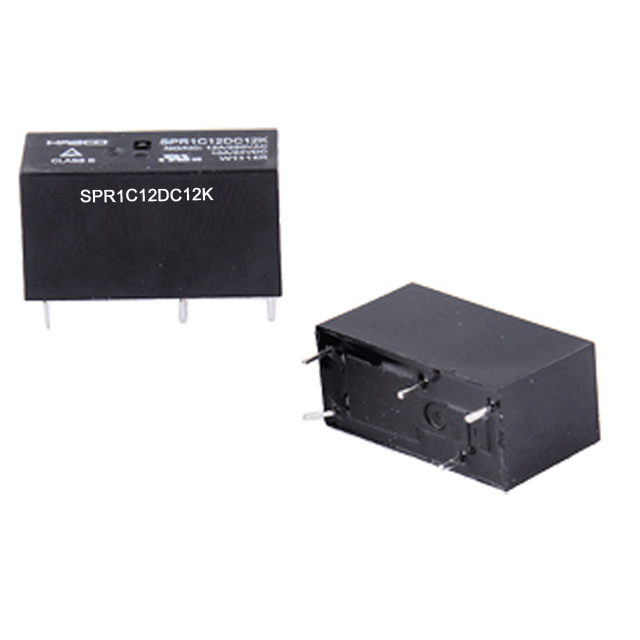

SPR1C12DC12K

Active

Hasco Relays

RELAY SPDT 12A 12V

Search across all available documentation for this part.

Active

Hasco Relays

RELAY SPDT 12A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage [Max]	Coil Voltage	Contact Rating (Current)	Contact Form	Termination Style	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Insulation	Contact Material	Must Operate Voltage	Mounting Type	Coil Type	Must Release Voltage	Coil Current	Release Time
Hasco Relays SPR1C12DC12K	277 VAC	12 VDC	12 A	SPDT (1 Form C)	PC Pin	10 ms	-40 °C	70 °C	Class B	Silver Alloy	8.4 VDC	Through Hole	Non Latching	1.2 VDC	33.3 mA	5 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	40	$ 1.97

General part information

Relay SPDT (1 Form C) 12VDC Coil Through Hole

Technical documentation and resources
