EGJ.2B.314.CLA

Active

LEMO

CONN RCPT MALE 14P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

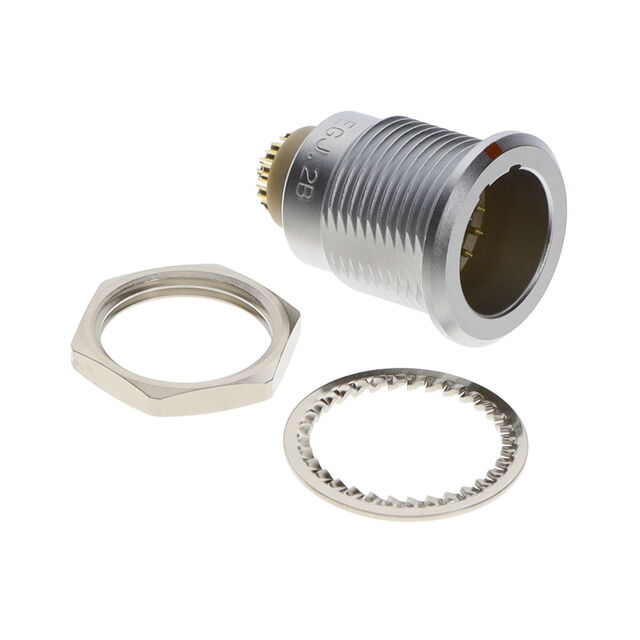

EGJ.2B.314.CLA

Active

LEMO

CONN RCPT MALE 14P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGJ.2B.314.CLA	EGJ.2B Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	6.5 A	5 - 25 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	14	2 - 19
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	J	J
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	314	302 - 319
Shielding	Shielded	Shielded
Termination	-	Crimp, Solder

EGJ.2B Series

CONN RCPT MALE 2POS GOLD CRIMP

Part	Shell Size - Insert	Contact Finish - Mating	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Finish	Mounting Feature	Orientation	Termination	Shell Material	Current Rating (Amps)	Color	Shielding	Primary Material	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Ingress Protection	Mounting Type	Number of Positions
LEMO EGJ.2B.302.CYC	302	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J	Crimp	Brass	25 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin	2	UL94 V-0	IP50
LEMO EGJ.2B.312.CLA	312	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J		Brass	7 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin	12	UL94 V-0	IP50
LEMO EGJ.2B.310.CYC	310	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J	Crimp	Brass	8 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin	10	UL94 V-0	IP50
LEMO EGJ.2B.305.CLA	305	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J		Brass	14 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin		UL94 V-0	IP50
LEMO EGJ.2B.319.CLDY	319	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J	Solder	Brass	5 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin	19	UL94 V-0	IP50	Panel Mount, Through Hole
LEMO EGJ.2B.308.CLA	308	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J		Brass	10 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin	8	UL94 V-0	IP50
LEMO EGJ.2B.314.CLA	314	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J		Brass	6.5 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin	14	UL94 V-0	IP50
LEMO EGJ.2B.316.CLA	316	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J		Brass	6 A	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin		UL94 V-0	IP50		16
LEMO EGJ.2B.318.CLA	318	Gold	Polyetheretherketone (PEEK)	-55 °C	250 °C	Brass	Chrome	Bulkhead - Rear Side Nut	J		Brass	5.5 Amps	Silver	Shielded	Metal	Male Pins, Receptacle	Push-Pull	1 µm	39.4 µin	18	UL94 V-0	IP50
