1-965641-2
ActiveTE Connectivity AMP Connectors

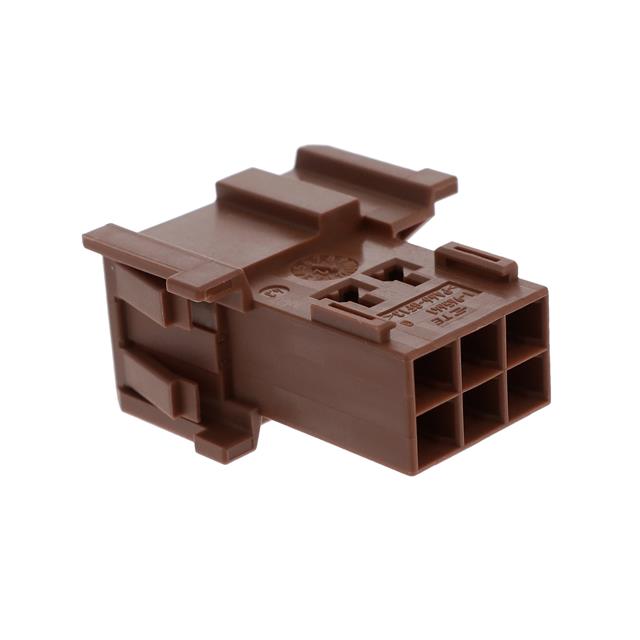

TAB HOUSING 2,8 6P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-965641-2
ActiveTE Connectivity AMP Connectors
TAB HOUSING 2,8 6P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-965641-2 | 965641 Series |
|---|---|---|
| Color | Brown | Brown, Green, Blue, Purple |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Tab |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled, Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 2 | 2 - 3 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.217 in | 0.217 in |
| Row Spacing | 5.5 mm | 5.5 - 5.51 mm |
| Row Spacing | - | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.39 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.13 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.91 | |||
965641 Series
TAB HOUSING 2,8 6P
| Part | Color | Pitch [x] | Pitch [x] | Mounting Type | Contact Type | Insulation Material | Row Spacing | Row Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Connector Type | Number of Positions | Contact Termination | Row Spacing [x] | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-965641-2 | Brown | 5 mm | 0.197 in | Free Hanging (In-Line) | Tab | Polyamide (PA66), Nylon 6/6, Glass Filled | 0.217 in | 5.5 mm | -40 °C | 120 °C | 2 | Plug | 6 | Crimp | ||
TE Connectivity AMP Connectors 1-965641-5 | Green | 5 mm | 0.197 in | Free Hanging (In-Line) | Tab | Polyamide (PA66), Nylon 6/6, Glass Filled | 5.51 mm | -40 °C | 120 °C | 3 | Plug | 6 | Crimp | 0.217 in | Contacts Not Included | |
TE Connectivity AMP Connectors 3-965641-1 | Blue | 5 mm | 0.197 in | Free Hanging (In-Line) | Tab | Polybutylene Terephthalate (PBT), Glass Filled | 5.51 mm | -40 °C | 120 °C | 2 | Plug | 6 | Crimp | 0.217 in | Contacts Not Included | |
TE Connectivity AMP Connectors 1-965641-4 | Purple | 5 mm | 0.197 in | Free Hanging (In-Line) | Tab | Polyamide (PA66), Nylon 6/6, Glass Filled | 5.51 mm | -40 °C | 120 °C | 3 | Plug | 6 | Crimp | 0.217 in | Contacts Not Included |
Description
General part information
965641 Series
6 Rectangular Connectors - Housings Plug Brown 0.197" (5.00mm)
