415-0543-036
ActiveCinch Connectivity Solutions Johnson
SMP FEMALE - 2.4MM STRAIGHT PLUG
415-0543-036
ActiveCinch Connectivity Solutions Johnson
SMP FEMALE - 2.4MM STRAIGHT PLUG
Description
General part information
415-0543-036

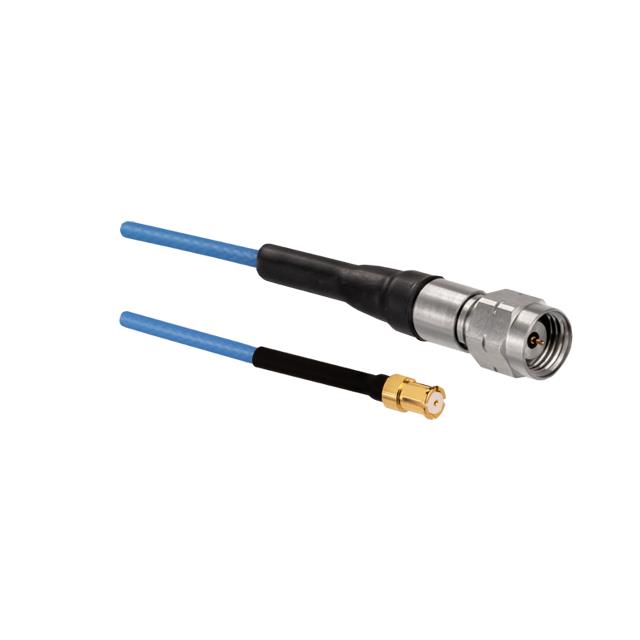

Cable Assembly Coaxial 2.4mm to SMP 0.047" Flexible Cable 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 415-0543-036 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.4 mm |
| 1st Contact Gender | Male |
| 2nd Connector | SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.047 " |
| Cable Outer Diameter | 0.047 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.047, 0.047 " |
| Color | Blue |
| Frequency - Max | 67 GHz |
| Length | 36 in |
| Style | 2.4mm to SMP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
