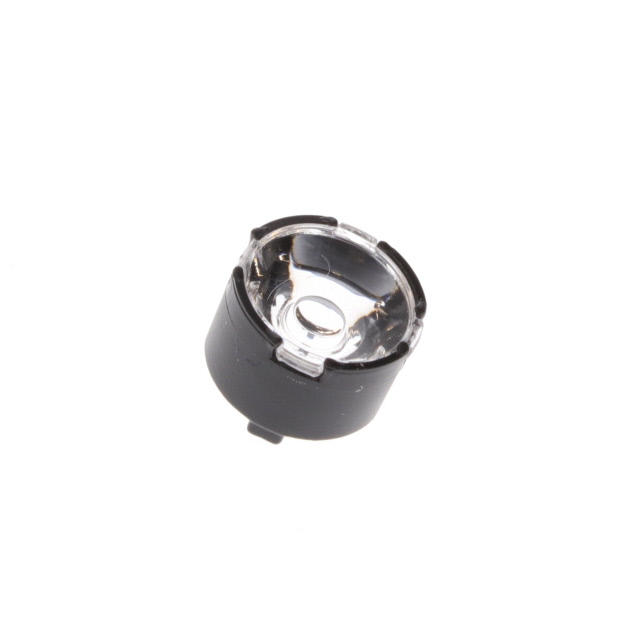

FP16607_LISA3CSP-RS-PIN

Active

LEDIL

ASSEMBLY ROUND 1 POS 10.0MM (D) 7,20MM(H/ PE BAG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDIL

ASSEMBLY ROUND 1 POS 10.0MM (D) 7,20MM(H/ PE BAG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	FP16607_LISA3CSP-RS-PIN

Color	Clear
For Use With/Related Manufacturer	Seoul, Nichia, Samsung
Lens Size [diameter]	10 mm
Material	Acrylic
Mounting Type	Adhesive
Number of LEDs	1
Optical Pattern	Spot
Type	Lens With Holder
Viewing Angle [Max]	22 °
Viewing Angle [Min]	14 °

ASSEMBLY ROUND 1 POS 10.0MM (D) 7,20MM(H/ PE BAG ROHS COMPLIANT: YES

Part	Optical Pattern	Lens Size [diameter]	Number of LEDs	Material	Viewing Angle [Max]	Viewing Angle [Min]	Type	Mounting Type	Color	For Use With/Related Manufacturer
LEDIL FP16607_LISA3CSP-RS-PIN	Spot	10 mm	1	Acrylic	22 °	14 °	Lens With Holder	Adhesive	Clear	Nichia, Samsung, Seoul

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens With Holder Clear 14° ~ 22° Spot Adhesive
