Description
General part information

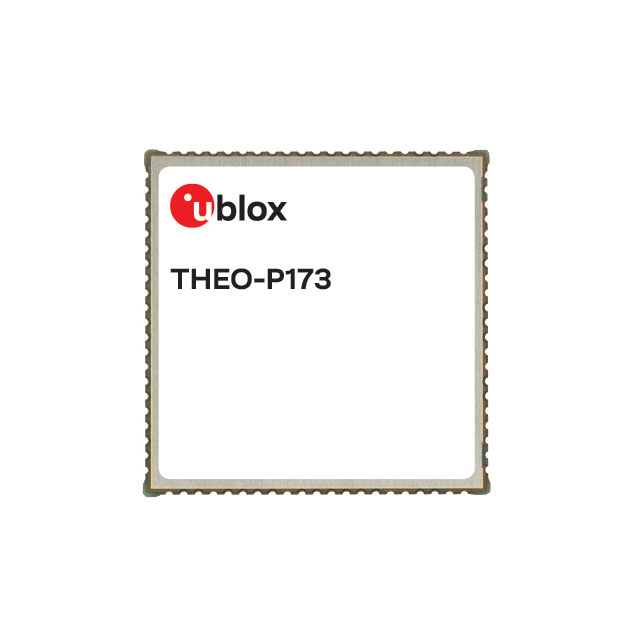

THEO-P173-02A
General ISM > 1GHz 802.11p Transceiver Module 5.85GHz ~ 5.925GHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | THEO-P173-02A |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 27 Mbps |
| Frequency (Max) | 5.925 GHz |
| Frequency (Min) | 5.85 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 23 dBm |
| Protocol | 802.11p |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -97 dBm |
| Serial Interfaces | USB, SPI |
| Voltage - Supply | 5 VDC, 3.3 V |
| Voltage - Supply | 5V, 3.3V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
