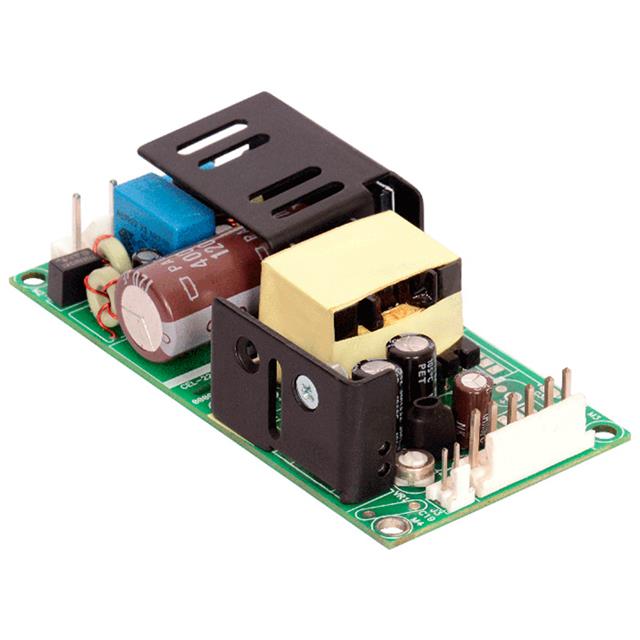

LFWLT40-3003

Active

Bel Power Solutions

AC/DC CNVRT 3.3V 5.2V -12.8V 42W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CNVRT 3.3V 5.2V -12.8V 42W

Technical Specifications

Parameters and characteristics for this part

Specification	LFWLT40-3003

Applications	ITE (Commercial)
Approval Agency	cUL, NEMKO, UL, CE
Current - Output 1	6 A
Current - Output 2	3 A
Current - Output 3	500 mA
Efficiency	85 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	42 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Standard Number	60950-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	3.3 V
Voltage - Output 2	5.2 V
Voltage - Output 3	-12.8 V

AC/DC CNVRT 3.3V 5.2V -12.8V 42W

Part	Standard Number	Voltage - Output 1	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 3	Number of Outputs	Type	Minimum Load Required	Voltage - Isolation	Current - Output 2	Current - Output 1	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 3	Approval Agency	Efficiency	Power (Watts)	Voltage - Output 2
Bel Power Solutions LFWLT40-3003	60950-1, 62368-1	3.3 V	Adjustable Output, Universal Input	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	ITE (Commercial)	-20 °C	70 °C	-12.8 V	3	Open Frame		4.242 kV	3 A	6 A	Chassis Mount	90 VAC	264 VAC	500 mA	CE, cUL, NEMKO, UL	85 %	42 W	5.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 45.79

General part information

Open Frame AC DC Converters 3 Output 3.3V 5.2V -12.8V 90 ~ 264 VAC Input
