SML-LXR0401USBW5MA

Active

Lumex Opto/Components Inc.

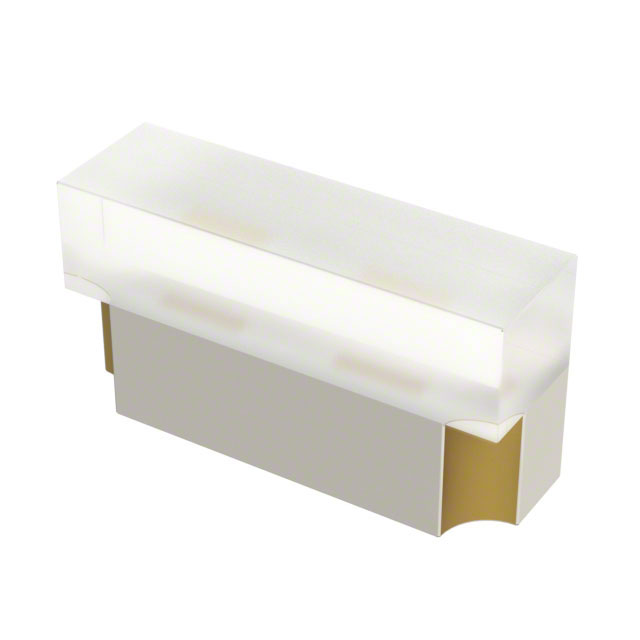

LED BLUE DIFFUSED SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED BLUE DIFFUSED SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LXR0401USBW5MA	SML-LXR0401 Series

Color	Blue	Green, White, Red, Blue
Configuration	Independent	Independent
Current - Test	5 mA	5 mA
Height (Max)	-	0.43 mm
Height (Max) [Max] [z]	0.3 mm	0.3 mm
Lens Color	White	White, Colorless
Lens Size [x]	1 mm	1 - 1.2 mm
Lens Size [y]	0.3 mm	0.3 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	28 mcd	28 - 100 mcd
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle
Package / Case	0402 (1005 Metric)	0402 (1005 Metric)
Size / Dimension [x]	1 mm	1 mm
Size / Dimension [y]	0.55 mm	0.55 mm
Supplier Device Package	-	0402
Viewing Angle	145 °	140 - 145 °
Voltage - Forward (Vf) (Typ)	2.8 V	2 - 2.9 V
Wavelength - Peak	-	520 - 630 nm

LED GREEN DIFFUSED SMD

Part	Height (Max) [Max] [z]	Current - Test	Package / Case	Viewing Angle	Lens Size [x]	Lens Size [y]	Color	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Lens Style	Lens Color	Wavelength - Peak	Lens Transparency	Mounting Type	Supplier Device Package	Height (Max) [Max]
Lumex Opto/Components Inc. SML-LXR0401UPGW5MA	0.3 mm	5 mA	0402 (1005 Metric)	145 °	1 mm	0.3 mm	Green	2.8 V	Independent	1 mm	0.55 mm	71 mcd	Rectangle with Flat Top	White	520 nm	Diffused	Surface Mount
Lumex Opto/Components Inc. SML-LXR0401UWC5MA		5 mA	0402 (1005 Metric)	140 °	1.2 mm	0.3 mm	White	2.9 V		1 mm	0.55 mm	100 mcd	Rectangle with Flat Top	Colorless		Clear	Surface Mount, Right Angle	0402	0.43 mm
Lumex Opto/Components Inc. SML-LXR0401SIC5MA		5 mA	0402 (1005 Metric)	145 °	1.2 mm	0.3 mm	Red	2 V		1 mm	0.55 mm	28.5 mcd	Rectangle with Flat Top	Colorless	630 nm	Clear	Surface Mount, Right Angle	0402	0.43 mm
Lumex Opto/Components Inc. SML-LXR0401USBW5MA	0.3 mm	5 mA	0402 (1005 Metric)	145 °	1 mm	0.3 mm	Blue	2.8 V	Independent	1 mm	0.55 mm	28 mcd	Rectangle with Flat Top	White		Diffused	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue LED Indication - Discrete 2.8V 0402 (1005 Metric)
