AC3MBH-AU-PRE

Active

Amphenol Sine Systems Corp

PLASTIC PANEL MOUNT PCB 3 PIN GO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AC3MBH-AU-PRE

Active

Amphenol Sine Systems Corp

PLASTIC PANEL MOUNT PCB 3 PIN GO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 2.51

Description

General part information

AC3M Series

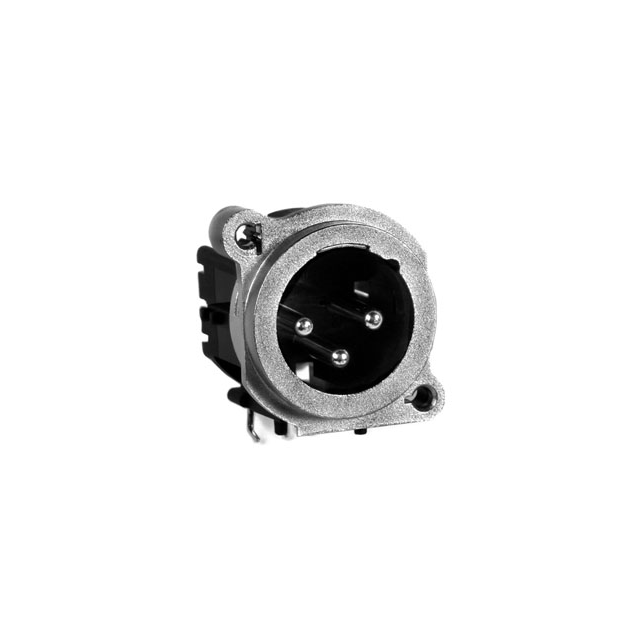

3 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC3MBH-AU-PRE	AC3M Series

	-	-
Applications	Audio	Audio
Backshell Material, Plating	-	Polyphenylene Ether (PPE)
Color	Black, Silver	Black, Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold, Silver
Contact Finish Thickness - Mating	1.97 Áin	1.97 Áin
Contact Finish Thickness - Mating	0.05 Ám	0.05 Ám
Contact Material	Brass	Brass, Phosphor Bronze
Current Rating (Amps)	6 A	6 - 15 A
Fastening Type	Latch Lock	Latch Lock, Push-Pull, Latch Holder
Features	Board Guide	Board Guide, Ground, Cable Clamp, Backshell
Ingress Protection	IP40	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic, Metal
Shell Finish	-	Nickel, Black
Shell Material	-	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Unshielded, Shielded
Termination	Solder	Solder

AC3M Series

PLASTIC PANEL MOUNT VERT PCB 3 P

Part	Color	Primary Material	Shell Size - Insert	Orientation	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Fastening Type	Contact Material	Features	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)	Mounting Type	Applications	Connector Type	Ingress Protection	Shielding	Insert Material	Shell Finish	Shell Material	Backshell Material, Plating
Amphenol Sine Systems Corp AC3MBV-AU-PRE	Black, Silver	Plastic	XLR	Keyed	Gold	-25 °C	75 ░C	Flange	Latch Lock	Brass	Board Guide	UL94 V-0	1.97 Áin	0.05 Ám	Solder	6 A	Panel Mount, Through Hole	Audio	Male Pins, Receptacle	IP40	Unshielded	Glass Filled, Nylon 6/6, Polyamide (PA66)
Amphenol Sine Systems Corp AC3MMDZ BULK	Silver	Metal	XLR	Keyed	Silver	-25 °C	75 ░C	Flange	Push-Pull	Brass	Ground	UL94 V-0				15 A		Audio	Male Pins, Receptacle	IP40	Shielded	Glass Filled, Nylon 6/6, Polyamide (PA66)	Nickel	Zinc Die Cast
Amphenol Sine Systems Corp AC3MBHL-AU-PRE
Amphenol Sine Systems Corp AC3MBV2-AU-PRE
Amphenol Sine Systems Corp AC3MBV3-AU-PRE
Amphenol Sine Systems Corp AC3MMDZB BULK	Black	Metal	XLR	Keyed	Silver	-25 °C	75 ░C	Flange	Push-Pull	Brass		UL94 V-0				15 A		Audio	Male Pins, Receptacle	IP40	Unshielded	Glass Filled, Nylon 6/6, Polyamide (PA66)	Black	Zinc Die Cast
Amphenol Sine Systems Corp AC3MBH1-AU-PRE
Amphenol Sine Systems Corp AC3MB BULK	Black	Metal	XLR	Keyed	Silver	-25 °C	75 ░C		Latch Holder	Phosphor Bronze	Backshell, Cable Clamp	UL94 V-0				15 A	Free Hanging (In-Line)	Audio	Male Pins, Receptacle	IP40	Unshielded		Black	Zinc Die Cast	Polyphenylene Ether (PPE)
Amphenol Sine Systems Corp AC3MCP BULK	Black	Plastic	XLR	Keyed	Silver	-25 °C	75 ░C		Latch Holder	Phosphor Bronze	Backshell, Cable Clamp	UL94 V-0				15 A	Free Hanging (In-Line)	Audio	Male Pins, Receptacle	IP40	Unshielded		Black		Polyphenylene Ether (PPE)
Amphenol Sine Systems Corp AC3MMB BULK	Black	Metal	XLR	Keyed	Silver	-25 °C	75 ░C		Latch Holder	Brass	Backshell, Cable Clamp	UL94 V-0				15 A	Free Hanging (In-Line)	Audio	Male Pins, Receptacle	IP40	Unshielded		Black	Zinc Die Cast	Polyphenylene Ether (PPE)
