PE3C8816/YW-300
ActivePasternack

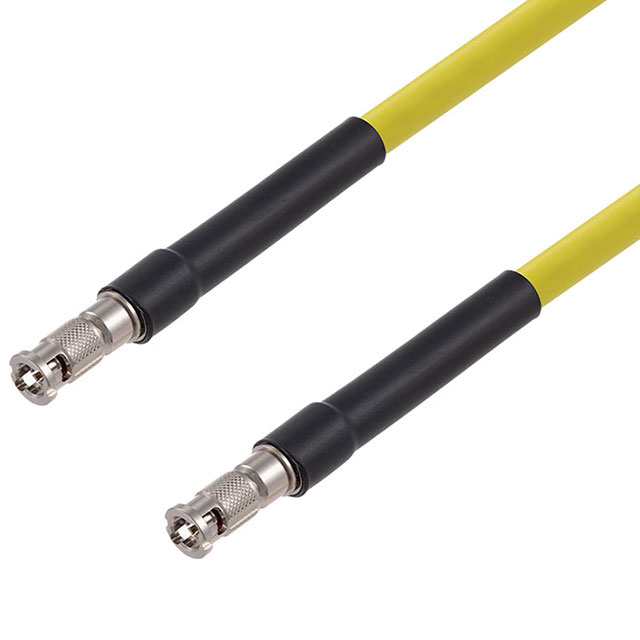

CBL ASSY HD-BNC PLUG TO PLUG 25'
PE3C8816/YW-300
ActivePasternack
CBL ASSY HD-BNC PLUG TO PLUG 25'
Description
General part information
PE3C8816/YW-300
Cable Assembly Coaxial HD-BNC to HD-BNC Belden 1694A 300.0" (7.6m) 25.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C8816/YW-300 |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 1694A |
| Color | Yellow |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 300 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | HD-BNC |
