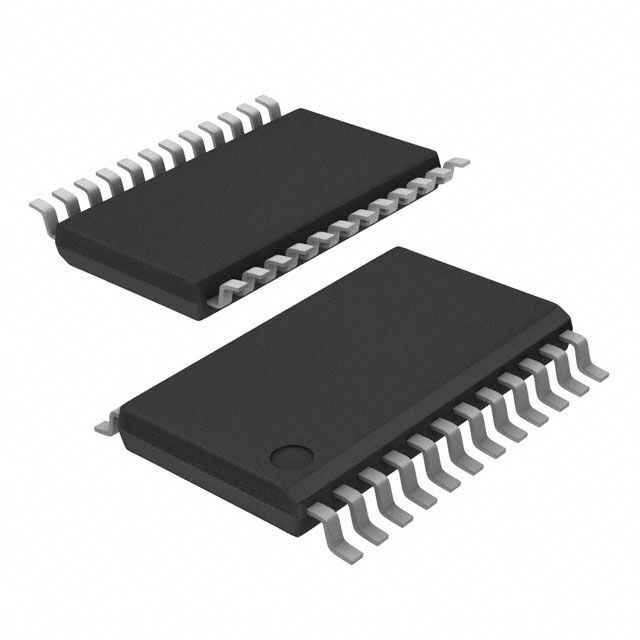

74LCX646TTR
ActiveSTMicroelectronics
IC TXRX NON-INVERT 3.6V 24TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74LCX646TTR
ActiveSTMicroelectronics
IC TXRX NON-INVERT 3.6V 24TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LCX646TTR |
|---|---|
| Current - Output High, Low | 24 mA |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | 3-State |
| Package / Case | 24-TSSOP |
| Package / Case | 0.173 in, 4.4 mm |
| Supplier Device Package | 24-TSSOP |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
74LCX646 Series
IC TXRX NON-INVERT 3.6V 24TSSOP
| Part | Number of Bits per Element | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Mounting Type | Number of Elements | Current - Output High, Low | Output Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 74LCX646TTR | 8 | 3.6 V | 2 V | 125 °C | -55 °C | 24-TSSOP | 0.173 in, 4.4 mm | Surface Mount | 1 | 24 mA | 3-State | 24-TSSOP |
Description
General part information
74LCX646 Series
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 24-TSSOP
Documents
Technical documentation and resources
