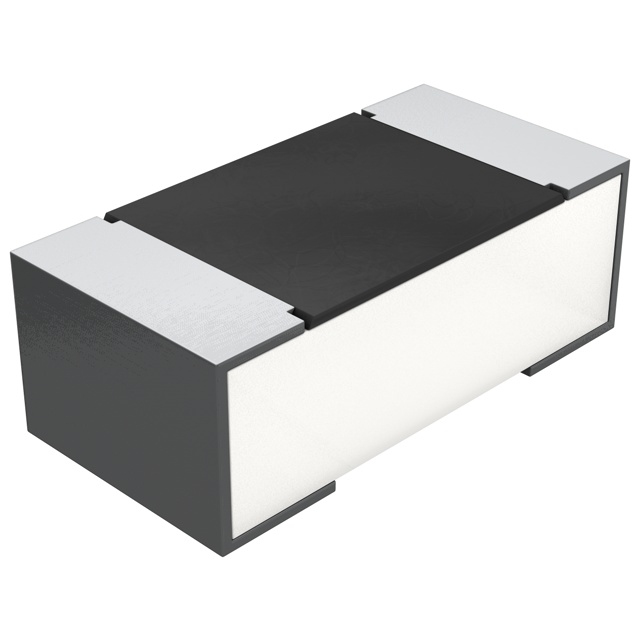

CRCW0402910RFKEDC

Active

Vishay Dale

RES 910 OHM 1% 1/16W 0402

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW0402910RFKEDC

Active

Vishay Dale

RES 910 OHM 1% 1/16W 0402

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW0402910RFKEDC	CRCW0402 Series

Composition	Thick Film	Thick Film
Features	-	Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max) [Max]	0.014 in	0.014 - 0.016 in
Height - Seated (Max) [Max]	0.35 mm	0.35 - 0.4 mm
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0402 (1005 Metric)	0402 (1005 Metric)
Power (Watts)	0.0625 W	0.0625 W
Power (Watts)	0.063 W	0.063 - 0.2 W
Power (Watts)	-	1/5
Ratings	-	AEC-Q200
Resistance	910 Ohms	0 - 750000 kOhms
Size / Dimension [x]	1 mm	1 mm
Size / Dimension [x]	0.039 in	0.039 in
Size / Dimension [y]	0.02 in	0.02 in
Size / Dimension [y]	0.5 mm	0.5 mm
Supplier Device Package	0402	0402
Supplier Device Package	-	402
Temperature Coefficient	100 ppm/°C	50 - 200 ppm/°C
Tolerance	1 %	0.25 - 10 %
Tolerance	-	Jumper

CRCW0402 Series

RES SMD 16.9K OHM 1% 1/16W 0402

...

Part	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Number of Terminations	Ratings	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Composition	Package / Case	Tolerance	Power (Watts)
Vishay Dale CRCW040216K9FKTD	16.9 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW0402390KJNEDC	390 kOhms	155 °C	-55 °C	0.0625 W	0.063 W		1 mm	0.02 in	0.5 mm	0.039 in	0402	2		200 ppm/°C	0.014 in	0.35 mm	Thick Film	0402 (1005 Metric)	5 %
Vishay Dale CRCW0402390RJNEDHP	390 Ohms	155 °C	-55 °C		0.2 W	Automotive AEC-Q200, Pulse Withstanding	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	200 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	5 %	1/5
Vishay Dale CRCW04021K30DHEDP	1.3 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	50 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)
Vishay Dale CRCW040224K3DKEDP	24.3 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)
Vishay Dale CRCW0402866KFKED	866 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW04021M91FKEDC	1.91 MOhms	155 °C	-55 °C	0.0625 W	0.063 W		1 mm	0.02 in	0.5 mm	0.039 in	0402	2		100 ppm/°C	0.014 in	0.35 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW040290K9FKED	90.9 kOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %
Vishay Dale CRCW040218R0JNEDC	18 Ohms	155 °C	-55 °C	0.0625 W	0.063 W		1 mm	0.02 in	0.5 mm	0.039 in	0402	2		200 ppm/°C	0.014 in	0.35 mm	Thick Film	0402 (1005 Metric)	5 %
Vishay Dale CRCW04023M57FKED	3.57 MOhms	155 °C	-55 °C	0.0625 W	0.063 W	Automotive AEC-Q200	1 mm	0.02 in	0.5 mm	0.039 in	0402	2	AEC-Q200	100 ppm/°C	0.016 in	0.4 mm	Thick Film	0402 (1005 Metric)	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
	Digi-Reel®	1	$ 0.10
	Tape & Reel (TR)	60000	$ 0.00

Description

General part information

CRCW0402 Series

910 Ohms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
