FSP065M-DBA

Active

FSP Technology Inc.

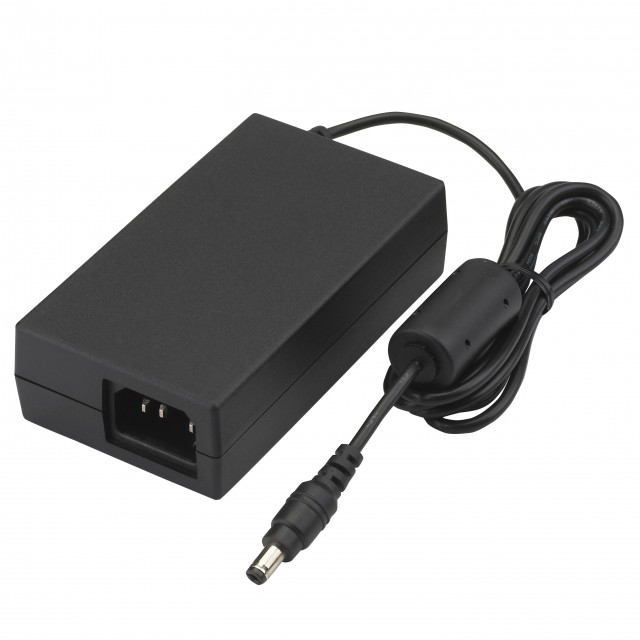

AC/DC DESKTOP ADAPTER 19V 65W

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 19V 65W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 19V 65W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Polarization	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output	Input Type	Form	No Load Power Consumption	Efficiency	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector	Output Connector [z]	Standard Number	Applications	Approval Agency	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length
FSP Technology Inc. FSP065M-DBA	40 °C	0 °C	International	Positive Center	65 W	58.1 mm	1.24 "	129.1 mm	31.5 mm	5.08 in	2.29 in	19 V	Cord	Desktop (Class I)	210 mW	Level VI	3.43 A	2.5 mm, 5.5 mm	Barrel Plug R/A	11 mm	60601-1	Medical	CE, cULus, FCC, TUV, VCCI	IEC 320-C14	90 VAC	264 VAC	1.2 m	47.2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	105	$ 25.75

General part information

19V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
