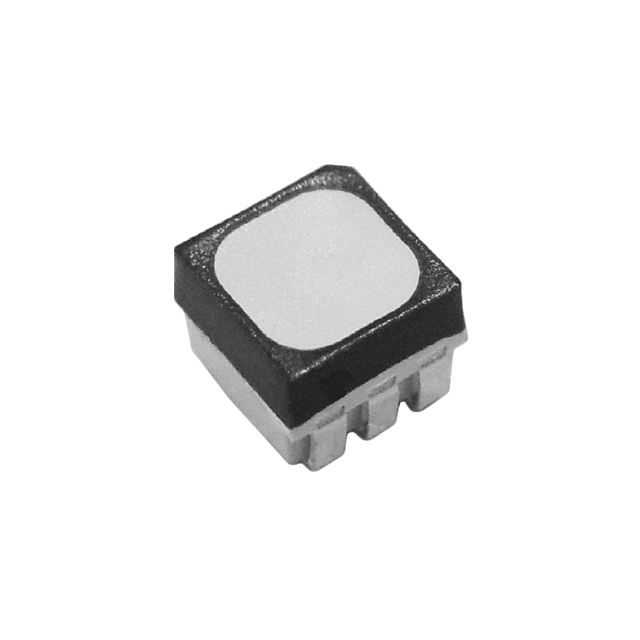

CLX6F-FKC-CKNNQDGBB7A363

Active

Cree LED

LED RGB 6PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLX6F-FKC-CKNNQDGBB7A363

Active

Cree LED

LED RGB 6PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.36
		10	$ 0.34
		100	$ 0.31
		1000	$ 0.28
	Digi-Reel®	1	$ 0.36
		10	$ 0.34
		100	$ 0.31
		1000	$ 0.28
	Tape & Reel (TR)	2800	$ 0.28

Description

General part information

CLX6F Series

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 2.7V Green, 3V Blue 6-SMD, J-Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLX6F-FKC-CKNNQDGBB7A363	CLX6F Series

Color	Red, Green, Blue	White, Warm, Amber, Cool, Red, Green, Blue, Neutral
Configuration	Independent	Independent, Standard
Current - Test	-	3 - 50 mA
Current - Test [custom]	15 mA	15 mA
Current - Test [custom]	10 mA	10 mA
Current - Test [custom]	10 mA	10 mA
Features	IPx8	IPx8
Height (Max) [Max]	2.9 mm	2.9 mm
Lens Size	-	3.4 mm
Lens Style	Square with Flat Top	Square with Flat Top, Oval with Flat Top
Millicandela Rating	-	1680 - 10500 mcd
Millicandela Rating [custom]	750 mcd	750 mcd
Millicandela Rating [custom]	240 mcd	240 mcd
Millicandela Rating [custom]	1350 mcd	1350 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-SMD, J-Lead	6-SMD, J-Lead
Size / Dimension [x]	3.4 mm	3.4 mm
Size / Dimension [y]	3.4 mm	3.4 mm
Supplier Device Package	6-PLCC	6-PLCC
Voltage - Forward (Vf) (Typ)	-	2.1 - 3.3 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3 V	3 V
Voltage - Forward (Vf) (Typ) [custom]	2.7 V	2.7 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm	470 - 622 nm

CLX6F Series

LED WARM WHITE 6PLCC SMD

Part	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Color	Lens Size	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Configuration	Height (Max) [Max]	Current - Test	Package / Case	Lens Style	Features	Wavelength - Dominant	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Cree LED CLX6F-WKW-V1R2E73	Surface Mount	6-PLCC	3.3 V	Warm, White	3.4 mm	3.4 mm	3.4 mm	10500 mcd	Independent	2.9 mm	35 mA	6-SMD, J-Lead	Square with Flat Top
Cree LED CLX6F-AKB-CUWFH3	Surface Mount	6-PLCC	2.2 V	Amber		3.4 mm	3.4 mm	5320 mcd	Independent	2.9 mm	50 mA	6-SMD, J-Lead	Square with Flat Top	IPx8	593 nm
Cree LED CLX6F-WKW-V1R2F53	Surface Mount	6-PLCC	3.3 V	Cool, White	3.4 mm	3.4 mm	3.4 mm	10500 mcd	Independent	2.9 mm	35 mA	6-SMD, J-Lead	Square with Flat Top
Cree LED CLX6F-WKW-V1R2E83	Surface Mount	6-PLCC	3.3 V	Warm, White	3.4 mm	3.4 mm	3.4 mm	10500 mcd	Independent	2.9 mm	35 mA	6-SMD, J-Lead	Square with Flat Top
Cree LED CLX6F-RKB-CS1BB3	Surface Mount	6-PLCC	2.1 V	Red		3.4 mm	3.4 mm		Standard	2.9 mm	3, 20 mA	6-SMD, J-Lead	Square with Flat Top	IPx8	622 nm
Cree LED CLX6F-FKC-CNP1ST1E1BB7D3D3	Surface Mount	6-PLCC		Blue, Green, Red		3.4 mm	3.4 mm		Independent	2.9 mm		6-SMD, J-Lead	Square with Flat Top	IPx8	470 nm, 530 nm, 622 nm	750 mcd	240 mcd	1350 mcd	15 mA	10 mA	10 mA	2.1 V	3 V	2.7 V
Cree LED CLX6F-AKB-CU1FS3	Surface Mount	6-PLCC	2.2 V	Amber		3.4 mm	3.4 mm	4575 mcd	Standard	2.9 mm	3, 50 mA	6-SMD, J-Lead	Square with Flat Top	IPx8	593 nm
Cree LED CLX6F-WKW-V1R2E33	Surface Mount	6-PLCC	3.3 V	Cool, White	3.4 mm	3.4 mm	3.4 mm	10500 mcd	Independent	2.9 mm	35 mA	6-SMD, J-Lead	Square with Flat Top
Cree LED CLX6F-BKB-CPR453	Surface Mount	6-PLCC	2.9 V	Blue		3.4 mm	3.4 mm	1680 mcd	Standard	2.9 mm	3, 20 mA	6-SMD, J-Lead	Square with Flat Top	IPx8	470 nm
Cree LED CLX6F-BKB-CP14S3	Surface Mount	6-PLCC	2.9 V	Blue		3.4 mm	3.4 mm	1680 mcd	Standard	2.9 mm	3, 20 mA	6-SMD, J-Lead	Square with Flat Top	IPx8	470 nm
