LTC1754ES6-3.3#TRPBF
ActiveMICROPOWER, REGULATED 3.3V/5V CHARGE PUMP WITH SHUTDOWN IN SOT-23
Deep-Dive with AI
Search across all available documentation for this part.
LTC1754ES6-3.3#TRPBF
ActiveMICROPOWER, REGULATED 3.3V/5V CHARGE PUMP WITH SHUTDOWN IN SOT-23
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC1754ES6-3.3#TRPBF |
|---|---|
| Current - Output | 40 mA |
| Frequency - Switching | 600 kHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

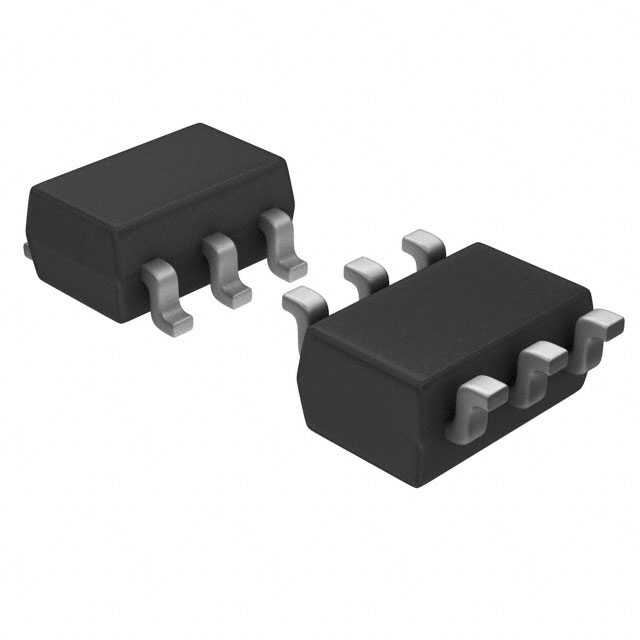

| Package / Case | SOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Synchronous Rectifier | False |
| Voltage - Input (Max) [Max] | 4.4 V |
| Voltage - Input (Min) [Min] | 2 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.99 | |
| 10 | $ 4.75 | |||
| 25 | $ 4.17 | |||
| 100 | $ 3.52 | |||
| 250 | $ 3.21 | |||
| 500 | $ 3.02 | |||
| 1000 | $ 2.86 | |||
| Digi-Reel® | 1 | $ 6.99 | ||
| 10 | $ 4.75 | |||
| 25 | $ 4.17 | |||
| 100 | $ 3.52 | |||
| 250 | $ 3.21 | |||
| 500 | $ 3.02 | |||
| 1000 | $ 2.86 | |||
| Tape & Reel (TR) | 2500 | $ 2.69 | ||
Description
General part information
LTC1754 Series
The LTC1754 is a micropower charge pump DC/DC converter that produces a regulated output. The input voltage range is 2V to 4.4V for 3.3V output and 2.7V to 5.5V for 5V output. Extremely low operating current and a low external parts count (one flying capacitor and two small bypass capacitors at VINand VOUT) make the LTC1754 ideally suited for small, battery-powered applications. The total component area of the application circuit shown below is only 0.052 inch².The LTC1754 operates as a Burst Mode™switched capacitor voltage doubler to produce a regulated output. It has thermal shutdown capability and can survive a continuous short circuit from VOUTto GND.The LTC1754 is available in a 6-pin SOT-23 package.ApplicationsSIM Interface Supplies for GSM Cellular TelephonesWhite LED Power SuppliesLi-Ion Battery Backup SuppliesHandheld ComputersSmart Card ReadersPCMCIA Local 5V Supplies
