786557-7

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68P VERT PRESS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68P VERT PRESS

Technical Specifications

Parameters and characteristics for this part

Specification	786557-7

Color	Black
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Polyphthalamide (PPA)
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	68
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Press-Fit
Voltage Rating	30 VDC

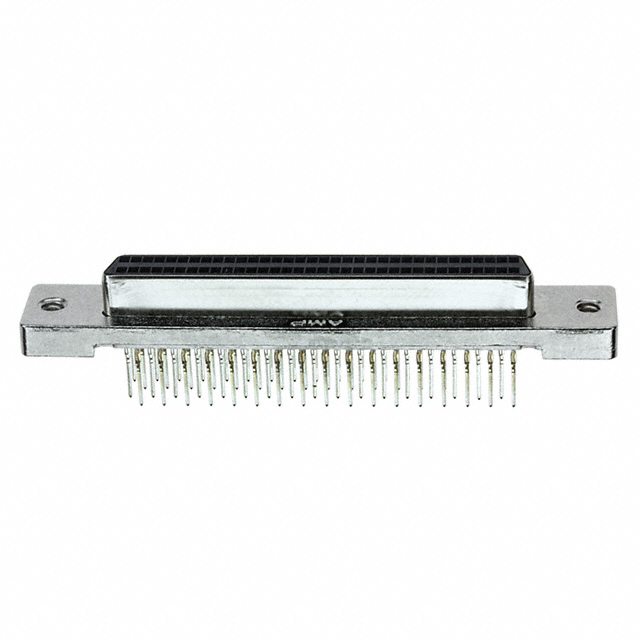

CONN D-TYPE RCPT 68P VERT PRESS

Part	Contact Finish	Material Flammability Rating	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Voltage Rating	Color	Contact Type	Features	Shell Material, Finish	Termination	Flange Feature	Contact Material	Number of Rows	Number of Positions	Mounting Type	Dielectric Material	Connector Type
TE Connectivity AMP Connectors 786557-7	Gold	UL94 V-0	D-Type	105 ░C	-55 °C	0.05	0.1	30 VDC	Black	Signal	Shielded	Nickel Plated, Steel	Press-Fit	Housing/Shell (4-40)	Phosphor Bronze	2	68	Through Hole	Polyphthalamide (PPA)	Receptacle, Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Position D-Type Receptacle, Female Sockets Connector
