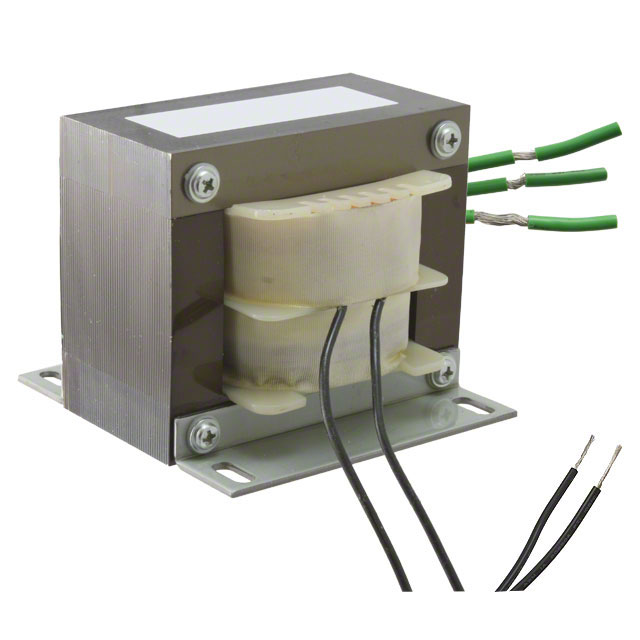

165V12
ActiveHammond Manufacturing
PWR XFMR LAMINATED 252VA CHAS MT
165V12
ActiveHammond Manufacturing
PWR XFMR LAMINATED 252VA CHAS MT
Description
General part information
165V12
PWR XFMR LAMINATED 252VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | 165V12 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 20 A |
| Height - Seated (Max) | 79.5 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 252 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 95.25 mm |
| Size / Dimension Width | 4 in |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 2000 V |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 12.6 V |
| Weight | 5.5 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
