Description
General part information

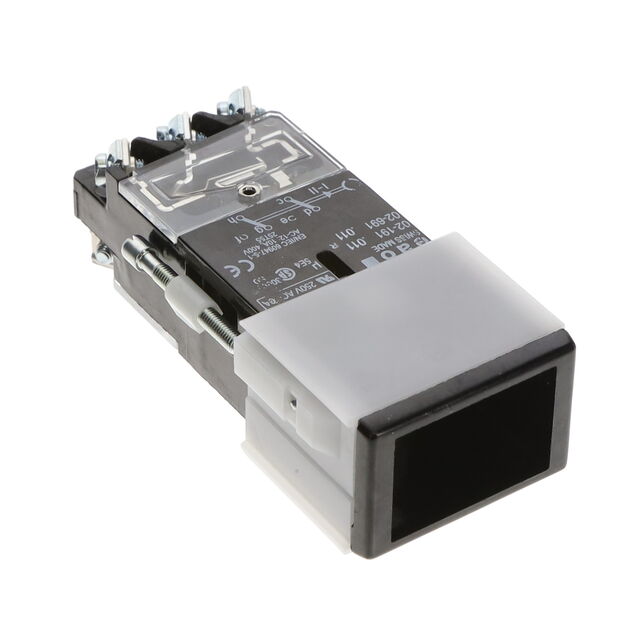

02-691.011
Keylock Switch 2 Position DPDT 10A (AC) 400 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 02-691.011 |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 90 ° |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Silver |
| Current Rating | 10 A |
| Depth Behind Flange | 75 mm |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Panel Cutout Length | 29.2 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 21.2 mm |
| Removable Positions Count | 1 |
| Switch Function | On-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 400 Vpk |
