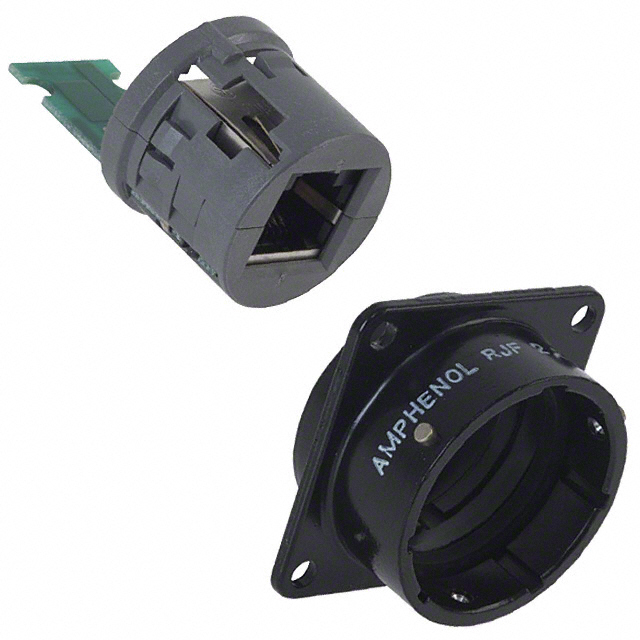

RJF22B00
ActiveAmphenol Socapex
CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
RJF22B00
ActiveAmphenol Socapex
CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJF22B00 |
|---|---|
| Connector Type | Jack |
| Features | Circular Bayonet Coupling |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount, Square Flange |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | PC Board, Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.57 | |
| 10 | $ 49.16 | |||
| 25 | $ 47.27 | |||
| 50 | $ 45.69 | |||
| 100 | $ 43.17 | |||
Description
General part information
RJF22B00
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e
